4-point sway control and the economical E2 2-point sway control

 Choice #2, the economical E2 2-point sway control WDH from Equalizer with: Integrated Sway Control, the Fastway e2™ hitches have the convenience of Integrated Sway Control™ built into the hitch; so you have sway control engaged whenever you are hitched up and towing. The e2™ utilizes unique sway control brackets instead of old ‘add-on’ sway bars or cam type attachments that are added to chain style hitches. Order page...

Equal-i-zer Weight Distributing Hitch. Your tow vehicle will need a receiver hitch with a 2 inch square receiving tube, as shown below on a truck frame with the bed removed. The receiver hitch or hitch receiver is bolted or welded solidly to your tow vehicle frame or sub-frame.  The Equal-i-zer weight distributing hitch with built in sway control, transfers the trailer tongue weight to all the axles of both the tow vehicle and trailer. Order below    Watch video   New Lower Prices

The new 2008 Ford Super Duty F250/350 now has 8 inch longer rear leaf springs. The new 2009 Ford F150 has 6 inch longer rear leaf springs. This means more rear sag than the previous year. They need Equalizer.

4-Point Sway Control and Weight Distributing Hitch

Hitches, 18 inches is a common hitch height. If your truck or SUV's hitch is near the 18" height and your trailer tongue coupler is in that range when setting level,  the 90-02-4100 shank will work for you which is included in the complete hitch. For more rise or drop see optional shanks below  Email questions...  Alaska and Hawaii Shipping $150 extra click Call for other countries 303-883-1300

Email me Questions or call 303-883-1300

Safe Secure ordering website



Choose One



Part Number



Description



Price

Buy Now Just Click

90-00-0600

$499

6,000 lbs. max. trailer weight. adjustable hitch complete,    600 lb max. tongue weight. Includes 90-02-4100 shank

$718 retail. MrTruck price $499  Buy

Buy Now Just Click

90-00-1000

$509

10,000 lbs. max. trailer weight. adjustable hitch complete, 1000 lb max. tongue weight. Includes 90-02-4100 shank

$730 retail. MrTruck price $509 Buy

Buy Now Just Click

90-00-1200

$525

12,000 lbs. max. trailer weight. adjustable hitch complete, 1200 lb max. tongue weight. Includes 90-02-4100 shank

$742 retail. MrTruck price $525 Buy
Buy Now Just Click
90-00-1400

$599

NEW 14,000 lbs. max. trailer weight. adjustable hitch complete, 1400 lb max. tongue weight. Includes 90-02-4100 shank

$852 retail. MrTruck price $599  Buy

Maximum tongue weight 10% of trailer weight rating. Average trailer tongue height from the ground up is 14 inches

 $90 shipping charge for any hitch (continental U.S. only). Alaska and Hawaii Shipping $150 extra click Call for other countries 303-883-1300

Pole Tongue Adapter for Boats Part # 95-01-5950 $116 click to order Description at bottom of this page.

 Standard Shank 90-02-4100 is Free with complete hitch.

Shank hole spacing is 1 1/4"

For all other shanks, add your choice of shanks to your shopping cart.

 New for class 5 receivers with 2 1/2 inch square hole

 Max Tongue Weight 1400 lbs, Max Gross Trailer 14,000 lbs

2-1/2" Shank, 12" long x 4" max drop or 8" max rise



2-1/2" Shank, 12" long x 4" max drop or 8" max rise

90-02-4800  Add shank to shopping cart  $198

2-1/2" shank. 12" long x 6" max drop or 10" max rise.

2-1/2" shank. 12" long x 6" max drop or 10" max rise.

90-02-4900  Add shank to shopping cart  $198



2-1/2' shank, 12" long x 3" max drop or 7" max rise

2-1/2' shank, 12" long x 3" max drop or 7" max rise

90-02-4700  Add shank to shopping cart  $198





Part Number



90-02-4100 shank 9.25", 12" long

adjustable shank (best for straight settings) average   (3" drop/ 7" rise)

Included free with WDH Hitch purchase

Buy without WD hitch $119

Email questions, or

call 303-883-1300



90-02-4200 shank 9.25", 12" long

adjustable shank (best for a slight Rise or Drop) slight (4" drop/ 8" rise)

Add shank to shopping cart  $119

90-02-4300 shank 11.25", 12" long

adjustable shank (best for a deep Rise or Drop) Deep (6" drop/ 10" rise)

 Add shank to shopping cart  $140

90-02-4400 shank 14", 12" long

adjustable shank (best for a deep Rise or Drop) Deep (9" drop/ 13" rise)

Add shank to shopping cart $140

90-02-4500 shank 9.25", 18" long

adjustable shank (best for a deep Rise or Drop) Deep (3" drop/ 7" rise)

Add shank to shopping cart  $150

90-02-4600 shank 9.25", 18" long

adjustable shank (best for a deep Rise or Drop) Deep (4" drop/ 8" rise)

Add shank to shopping cart  $150

Ball bolts need to be (1-1/4) 1.25 inches thick and (2-1/4) 2.25 inches long.

Add to cart 2" ball 8k now $17

Add to cart 2 5/16 ball 10k now $18

Add to cart 2 5/16 ball 12k now $23

Add to cart 2 5/16 ball 14k now $25

Installation manual

Spring arms should not be more than 32 inches max from the coupler (farthest distance to mount the trailer tongue spring arm brackets.)

29 inches minimum distance to mount from trailer tongue spring arm brackets to ball

Equal-i-zer offers a unique two-in-one design that combines weight distribution with sway control in one easy to use unit. The simple design has a built-in sway control to remove the risk of sway problems caused by passing vehicles, cross winds, and other towing hazards. Equal-i-zer is safe, simple, and easy to use.

Towing a trailer doesn't need to be a tense and fearful experience. It doesn't have to be difficult. It doesn't have to be filled with safety concerns and woes. The right hitch makes all the difference. It can turn a good trailer into a great trailer . . . and a great experience. Simply put -- the Equal-i-zer is the most affordable and best way to trailer.  Email questions...

Sway Control Brackets:
Rigid trailer attachments work with friction sway control to eliminate trailer sway. Brackets are height adjustable to control the amount of weight distribution tension on the spring arms.

Spring Arms:
The spring arms serve two purposes. When raised onto the sway control brackets they transfer trailer tongue weight evenly to the tow vehicle. They also work with the friction sway control to stop trailer sway.

Downward Pressure:
Downward pressure from trailer tongue increases friction sway control. Trailer hitch ball mounts here.

Upward Pressure:
Sway control brackets distribute weight by maintaining upward pressure on spring arms. The amount of pressure on the spring arms is a factor of trailer tongue weight and vehicle suspension. The friction sway control utilizes this pressure to control trailer sway.

Friction sway control:
Friction is enhanced by downward pressure from trailer tongue and upward pressure on spring arms. These opposing pressures come together to create an unequaled sway control system.

When you spend thousands of dollars on a tow vehicle and trailer, it just makes sense to protect it. Equal-i-zer gives you the protection and peace of mind you need to enjoy a vacation. Here are a few of the many advantages to owning an Equal-i-zer -- the Original Sway Control Hitch.

1 Controls sway caused by cross winds.
2 Remains steady when large vehicles pass.
3 Maintains control on uneven roads.
4 Minimizes bounce on sectioned roads.
5 Quick hookup at any angle.
6 Durable and rigid.
7 Lifetime warranty.
8 Compatible with electric or surge brakes.
9 Compatible with "pole tongue" or "A-frame" style trailers.
10 Dependable and proven with over 12 years on the road.
All hitches are not Equal11 Distributes trailer weight to all axles.
12 Easy installation.
13 Most affordable hitch in its class.
14 No "add-on" sway bars.
15 Available in three weight classifications.
16 Hassle-free turning and backing.
17 Made in the USA.

Without a doubt, the biggest safety problem with towing trailers is that they can sway too easily -- leading to loss of control. A number of factors contribute to sway, including: side winds, passing vehicles, quick lane changes, uneven roads, sudden stops, and even the trailer hitch itself.

Normal hitches simply don't handle these situations well. In fact, they often enhance the problem and make driving all the more stressful.

Several options are available to deal with trailer sway:

  1. The Equal-i-zer makes travel safer"Add-on" friction bar - added on to any chain style weight distribution hitch. While the "add-on" sway bar gives some sway dampening, drawbacks include adjustment difficulties and kinking in tight turns.
  2. Elaborate hitch system - priced between 750 and 2,400 dollars. These hitches are often complicated and difficult to use.
  3. Equal-i-zer sway control hitch - provides the most practical way to remove the risk of trailer sway.

The Equal-i-zer eliminates swaying hazards by incorporating sway control brackets, built to work in tandem with the patented hitch head. This distinctive design restricts the side-to-side movement of the weight distributing arms and virtually eliminates trailer sway.

The Equal-i-zer is easy to use, more effective at controlling trailer sway than two "add-on" sway bars, and has features comparable to elaborate hitch systems at a fraction of the cost. In fact, Equal-i-zer is the best value and best hitch on the market today!

Another common problem encountered when towing a trailer is "highway hop," or the bouncing that often happens to trailers on uneven roadways. Uneven weight distribution is often the cause of this.

With ordinary ball-type hitches, most of the trailer tongue-weight gets carried on the back axle of the tow vehicle, often this raises the front end of the vehicle. The uneven distribution makes steering control more difficult -- especially during emergency situations.

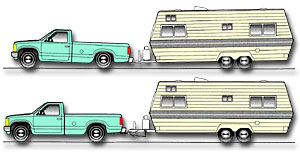

The Equal-i-zer stops trailer sag

Without weight distribution, the hitch sags.


With Equal-i-zer, the truck and trailer are level.

Weight distribution is needed to level a trailer and tow vehicle. Risks associated with driving a trailer without a weight distribution hitch include loss of steering control, braking difficulties, and hitch dragging.

To combat the weight distribution problem, the trailer and tow vehicle must be level. Options available to achieve proper weight distribution include:

  1. A chain style hitch - which uses chains attached to tapered spring arms. Chains are snapped onto trailer attachments distributing the weight.
  2. Equal-i-zer - replaces chains with rigid trailer attachments giving a smoother more comfortable ride. Equal-i-zer's solid, square spring arms provide you with superior weight distribution. Equal-i-zer makes towing safe and easy.

When you consider all the safety benefits of the patented Equal-i-zer hitch, it would surely be worth almost any price, but it is surprisingly affordable.

There are two options for attaching the Equal-i-zer to a pole tongue style trailer.

#1 Pole tongue adapter. (Left Picture below)  Part # 95-01-5950.  Price for the pole tongue adapter is $116.  This attaches to the trailer frame and spreads the arms out as if it were an A-frame.  The pole tongue adapter attaches to the frame of the trailer in approximately the same spot as the normal brackets.  Between 27” and 31” back from the center of the coupler is ideal.  You will need to see if this area is clear. Order...

#2 The best option is to use the existing brackets. (Right Picture above)  Eliminate the two inside link plates.  Bolt the outside link plates directly together around the pole tongue trailer.  Two jam (half) nuts will be needed for the L-bracket to fit properly.  We will include the jam nuts if they are ordered with the hitch.  The brackets also need to be somewhere between 27” and 31” back from the center of the coupler.  The arms will then ride straight back instead of spread out.  There aren’t any functional or performance issues using the Equal-i-zer this way.
