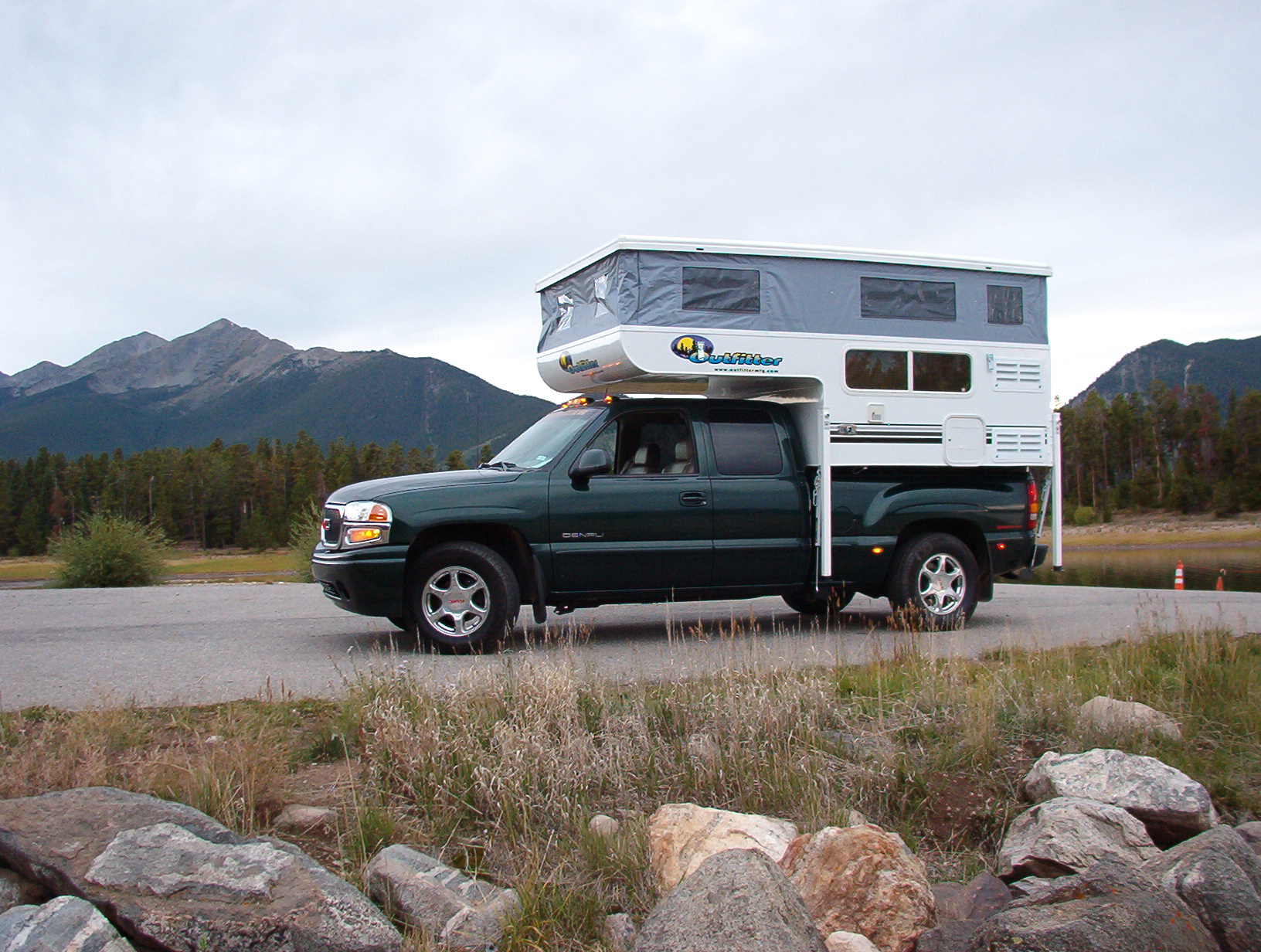

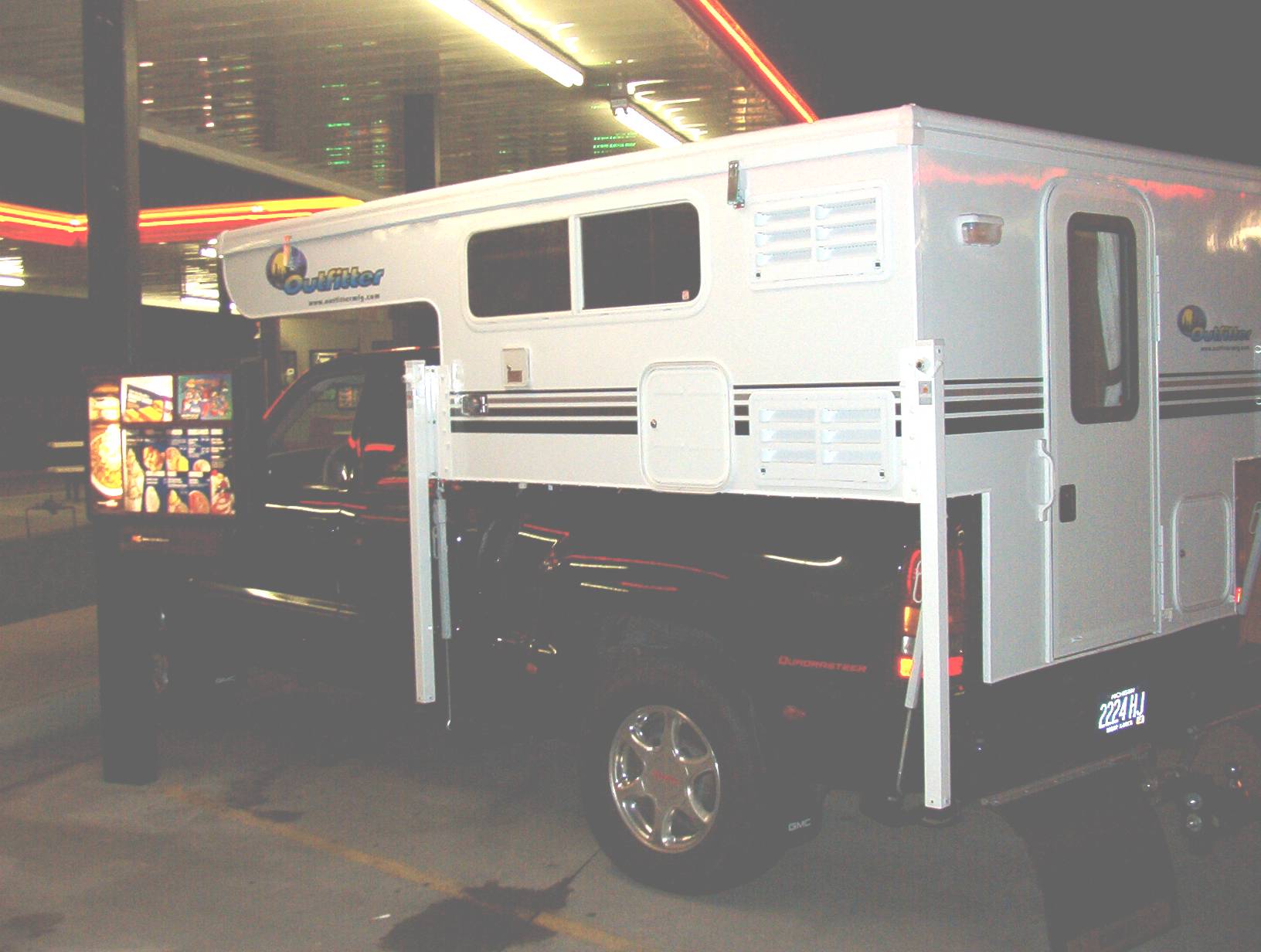

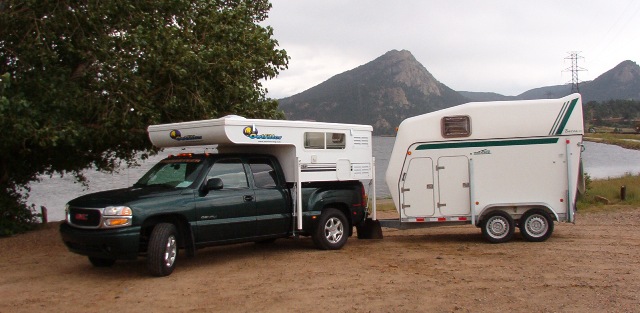

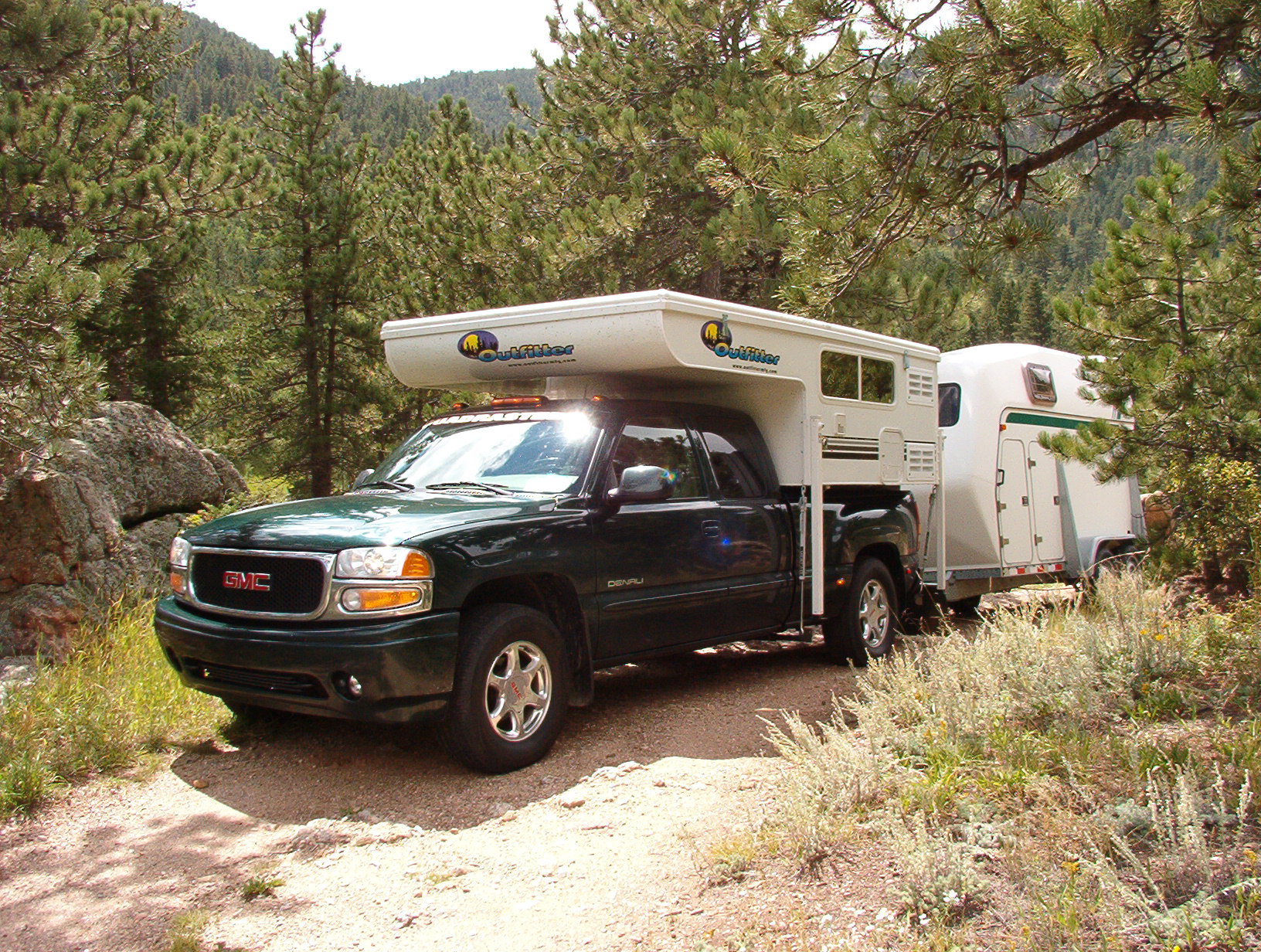

An alternative to the gooseneck horse trailer with a Living Quarters, above. Lots of options, for camping with and without the horses, and a good place to lock up the grandchildren, no not in the horse trailer, the camper. Here at Lake Estes, a low profile Caribou camper and lightweight aerodynamic 2-horse Brenderup trailer. This combination worked superbly driving the winding roads in the Rocky Mountain National Park. The camper was secure with Torklift Fastgun lever action spring loaded tie down system and the Quadrasteer kept the trailer in unison.
For more information visit the Outfitter website at www.OutfitterMfg.com or call 1-877-223-0814. And they sell Torklift products.
Torklift Frame Mounted Camper Tie-Down System.
When I look at how a lot of slide-in campers are tied down, with bolts threw the front bed walls to another frame work inside the bed and holes drilled threw the corner of the trucks rear bumper to tie the camper rear to, it worries me. The last really thick sturdy factory truck bed was in 1972. I remember my brother-in-laws new 1973 Ford F250, had a nice rounded bed wall flowing into the floor, I guess to make it easier to scoop grain out of. But the metal was thinner and when you hauled the bull to market with stock racks, he left a foot print were ever he stepped of the rack boards between the fenders. And now it's worse on all makes of trucks. Even in the nineties, a couple of men could lift a bed off a truck and carry it in good shape. Now you better have 6 men and a boy to keep the bed from collapsing while you carry it. Basically you need a sprayed in bedliner just to add some structural quality to the bed. And don't get me started on factory bumpers. In the Seventies and Eighties, we towed with the rear bumper. Now it's just decorative step. And you want to tie your camper to end of it?
Now the folks at Torklift have a system that lets you anchor your camper to the trucks frame, which makes since. The Torklift tie down arms stick out when you need to anchor your camper to them and then when you unload the camper, just pull the pins on the arms and you don't see the framework. I did use a pry bar a little to unfasten the rear bumper brackets and then slid the Torklift frame brackets into place and the bolt holes align well. I appreciate being able to use existing frame holes and bolts to attach the Torklift tie down system for campers. With boxed and sometimes hydroformed frames on newer trucks, the less you have to mess with the trucks frame the better. The GMC Denali Quadrasteer I used last summer came with nerf bar running boards as standard equipment. I did have to remove them for the Torklift frame brackets. If it were my truck, I would have welded the running board brackets to the Torklift frame brackets as an easy answer to using both. But Torklift does offer an adjustable tie down kit for running boards.

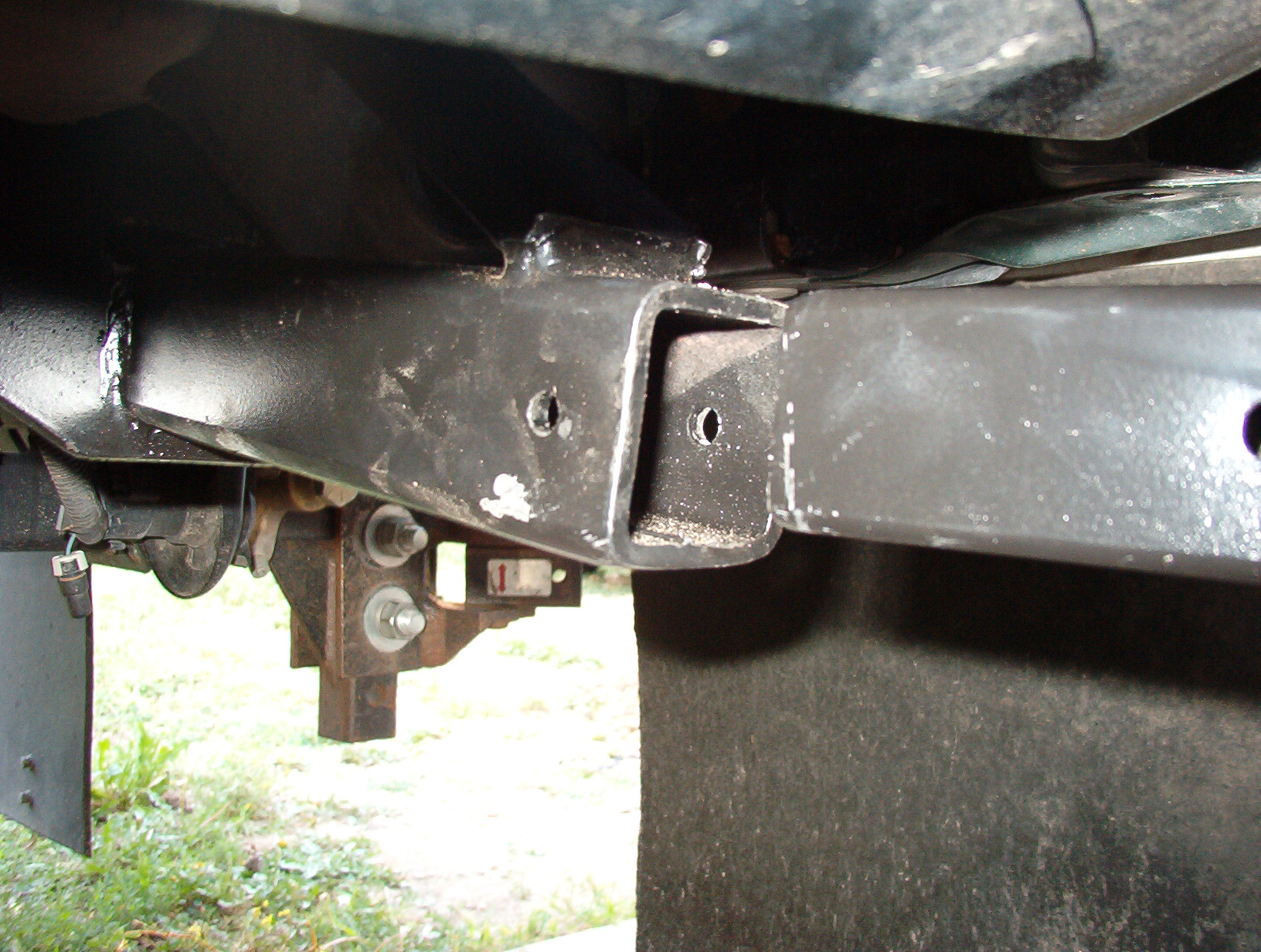

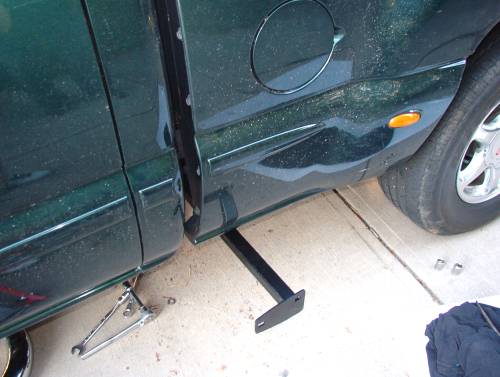

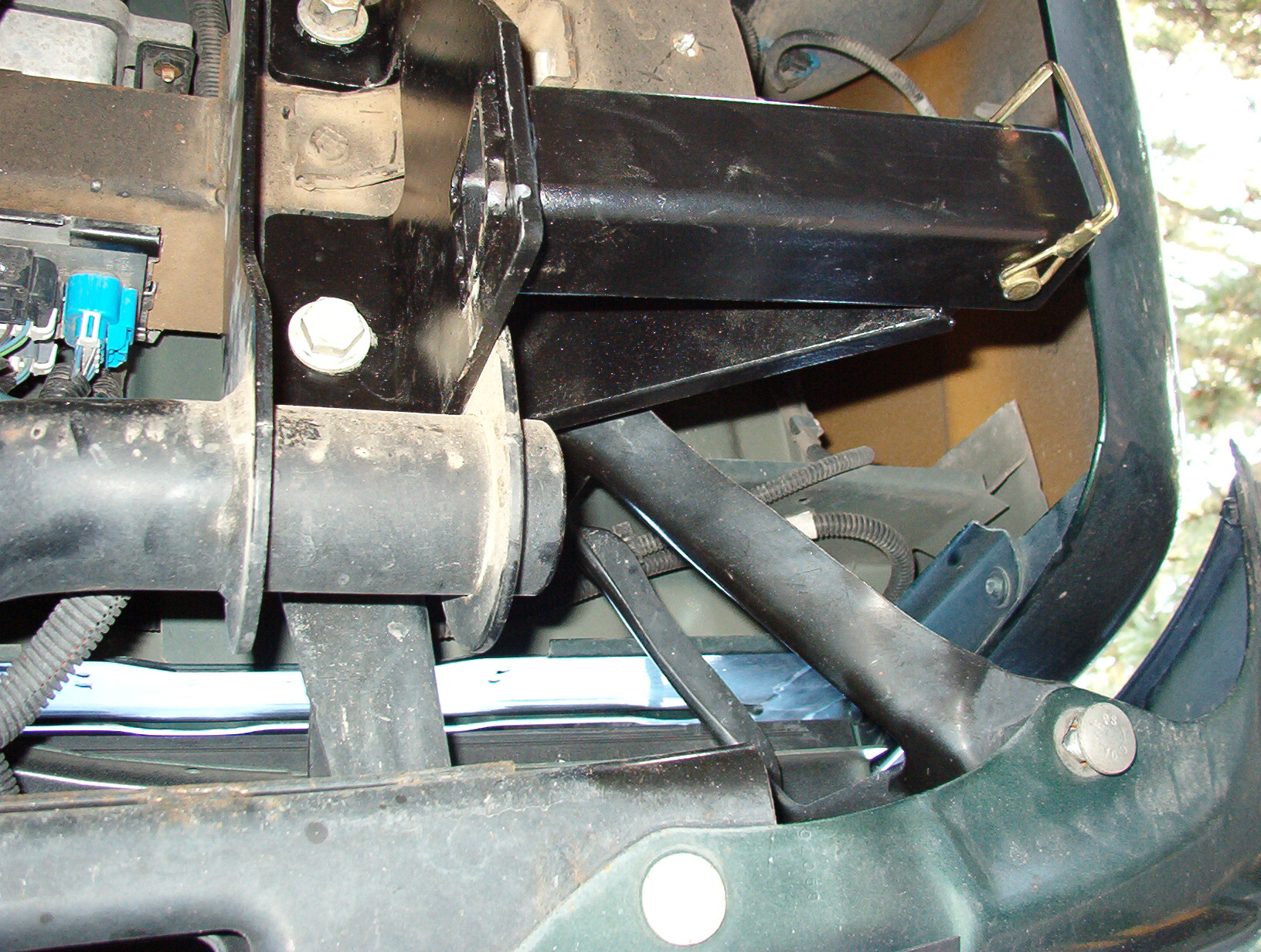

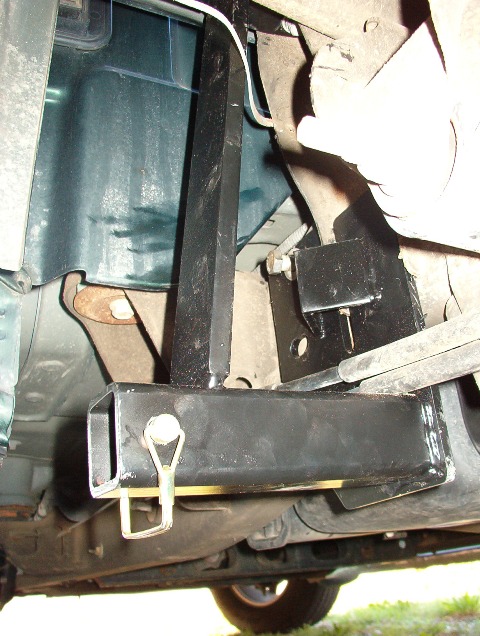

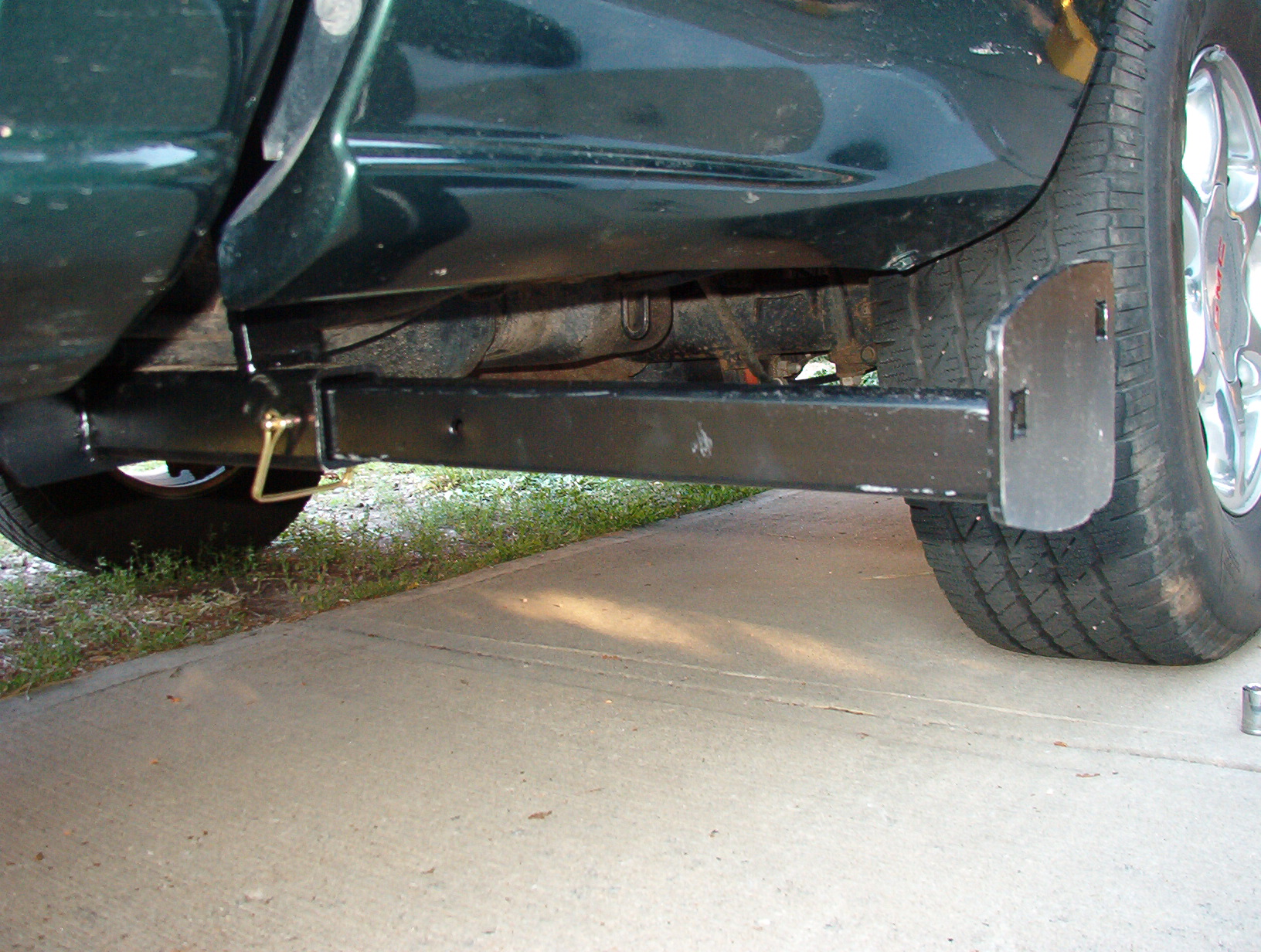

Front tie down truck
frame mount. The framework of the Torklift bolts to the trucks
frame for a solid anchor, without drilling holes. When you unload your
camper, the Torklift arms come off with a quick pin and blend in to the
trucks undercarriage. I used 18, 19 and 21 mm sockets on the 2002 GMC's
existing bolts to attach the tie down arms. Torklift has a model for
most trucks, even a model for the wider rear fenders on a Quadrasteer.

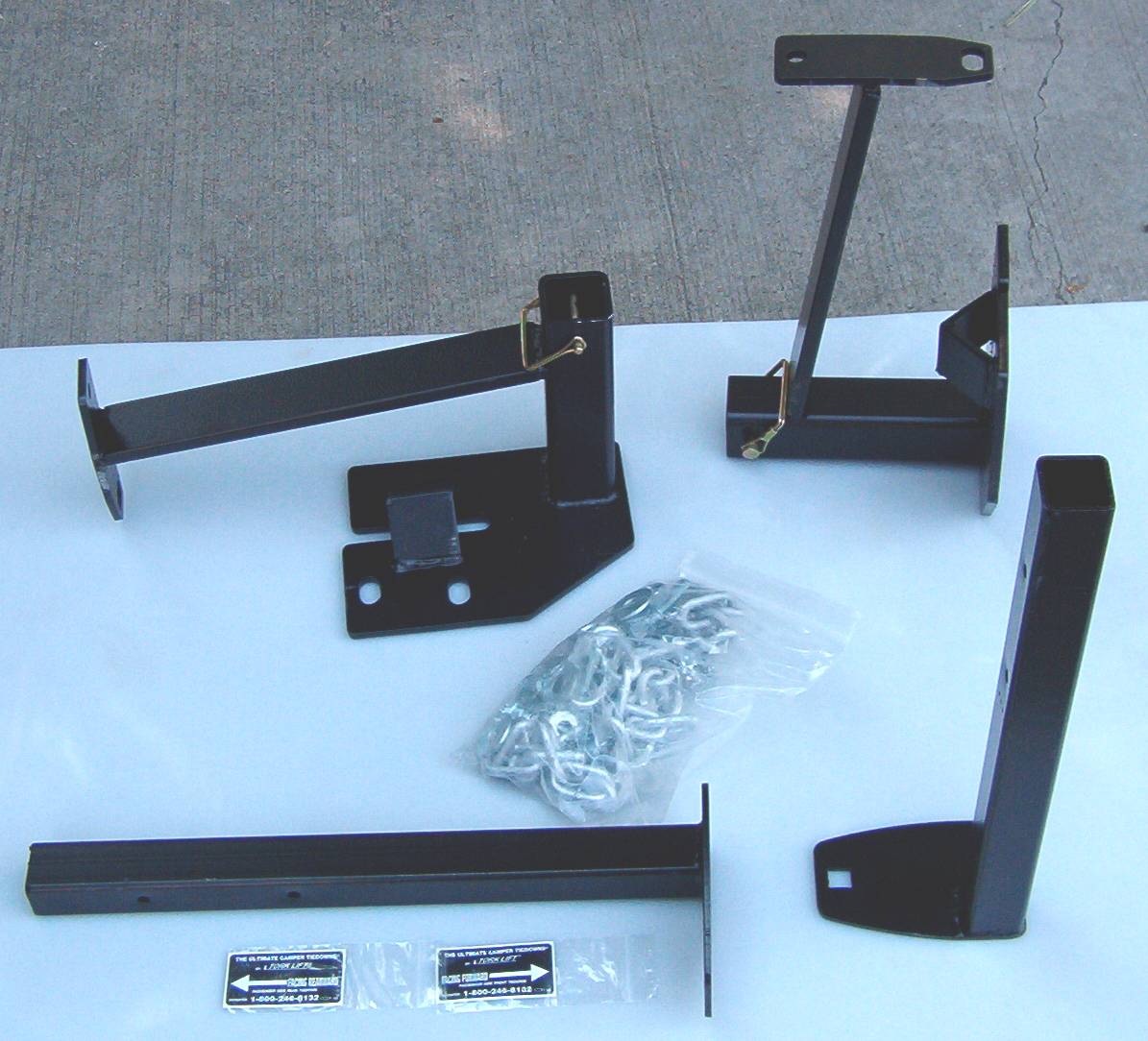

Torklift's tie down system is heavy duty and has a lifetime guarantee.
Good looking system
|

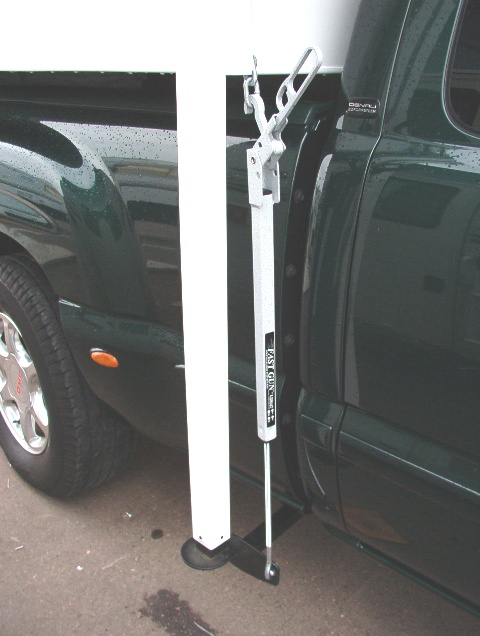

Another helpful product Torklift just introduced is the Fastgun lever action spring loaded turnbuckles. Once you adjust them for your camper, they snap into place with a standard pin and are lockable. We put the Fastguns to the test off-road as they kept the Outfitter Caribou camper tight on the Quadrasteer GMC bed. This speeds up the camper loading/unloading process. Fast Gun Lever-Action spring loaded turnbuckle, does remind you of Rifleman. |

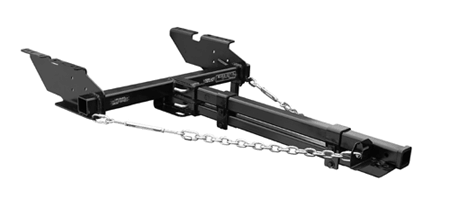

Torklift also has a SuperHitch receiver. This is the hitch you need with a 10-12 foot slide-in camper, if you plan on pulling a trailer too. |

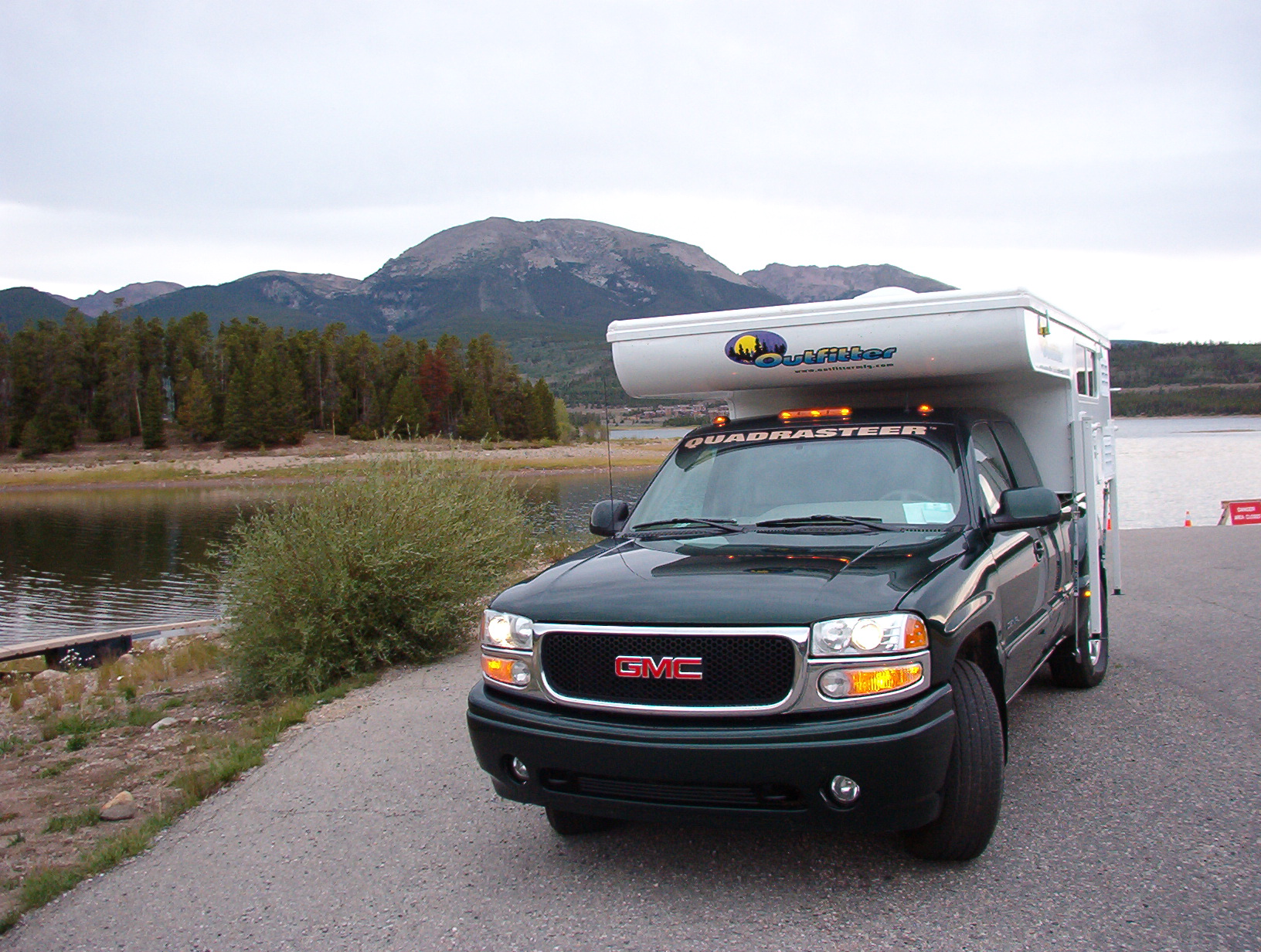

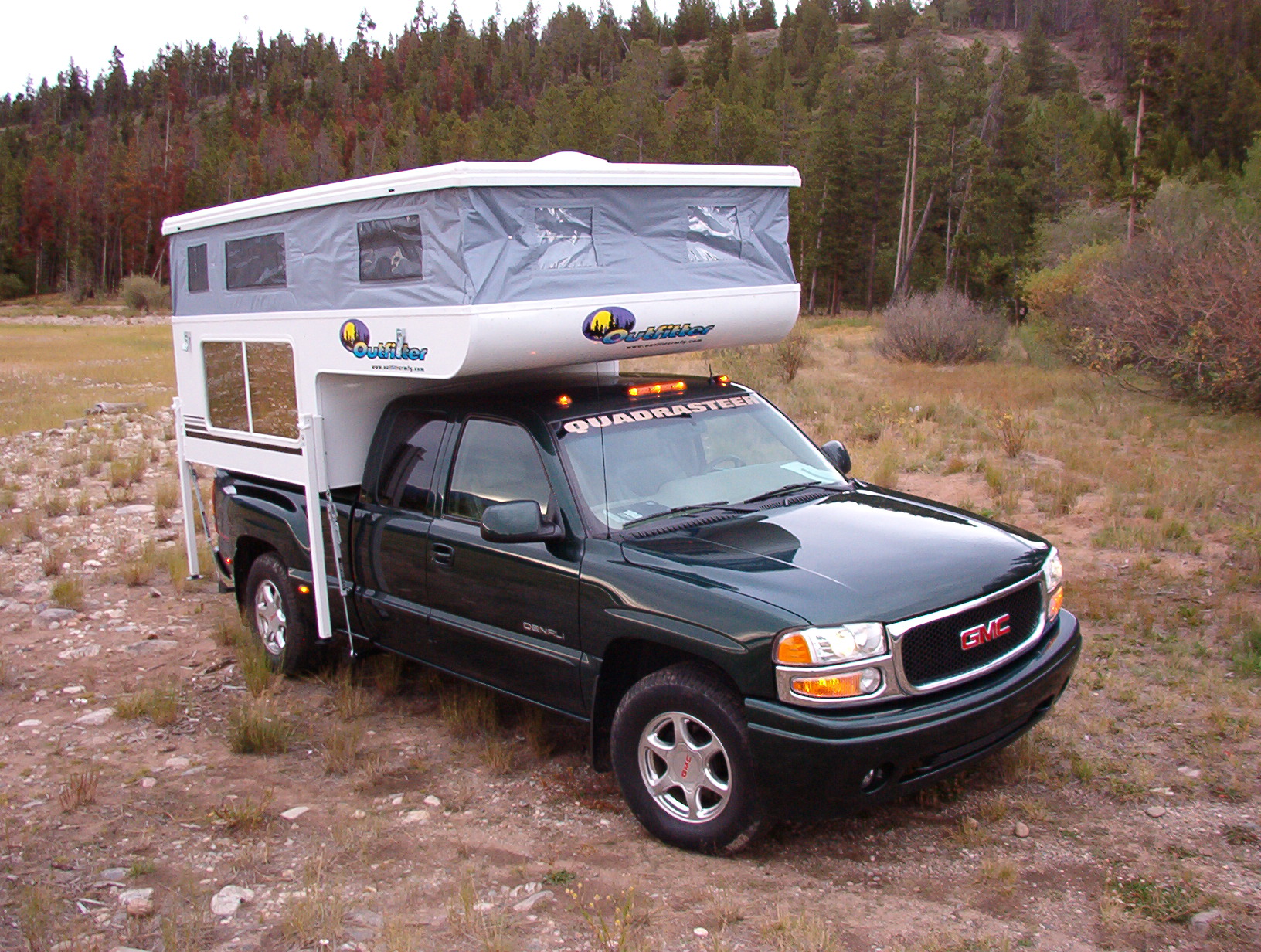

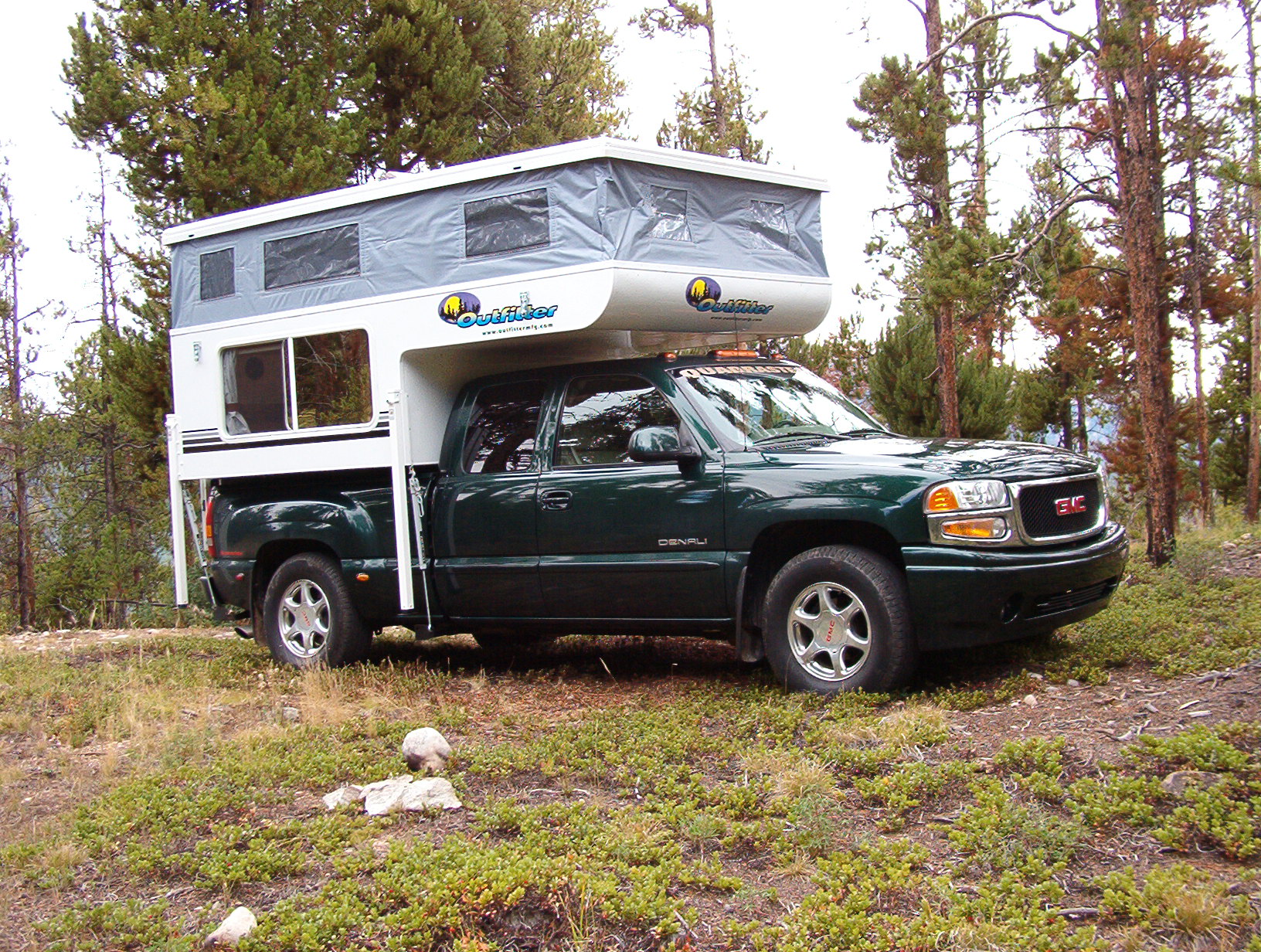

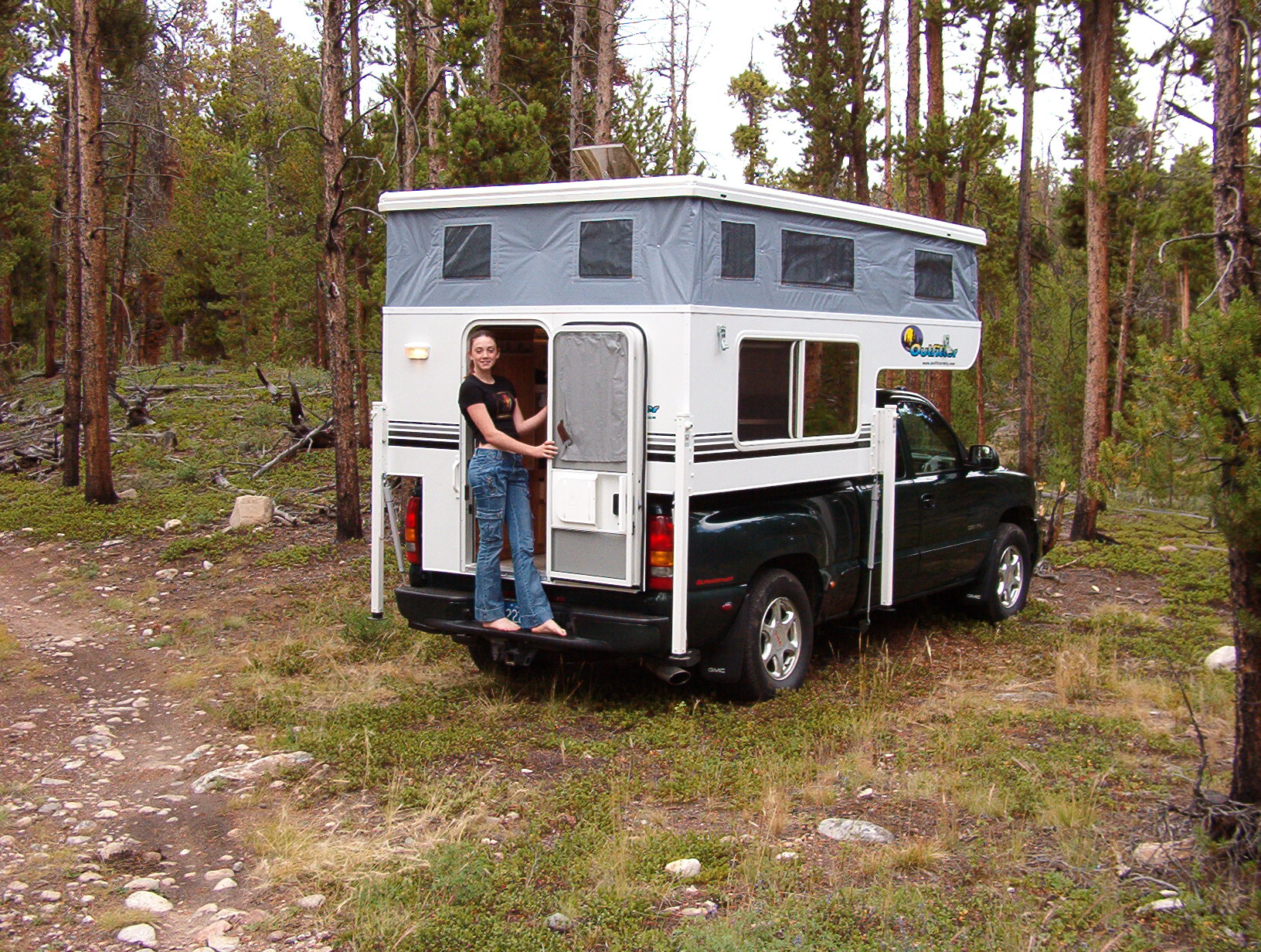

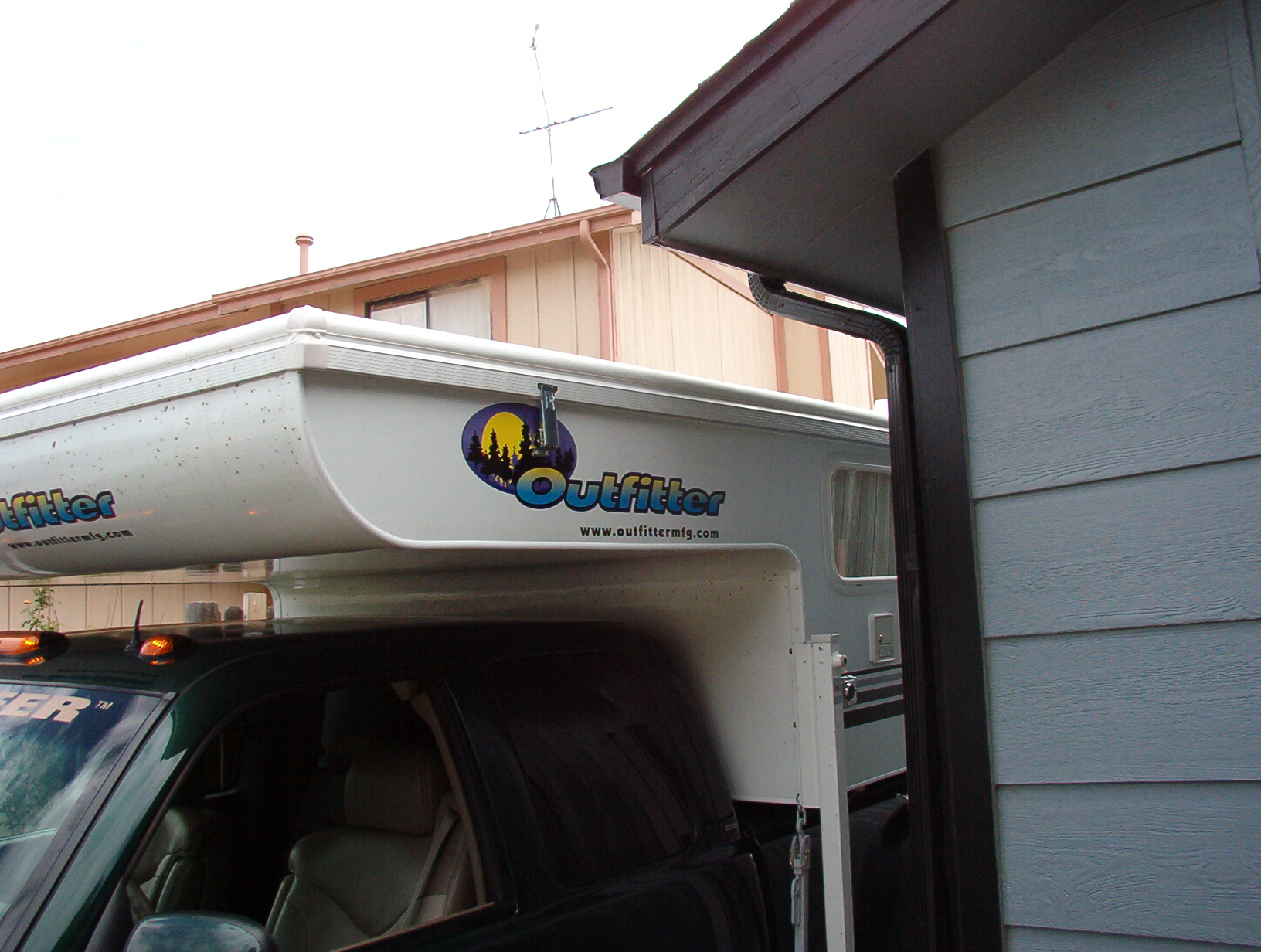

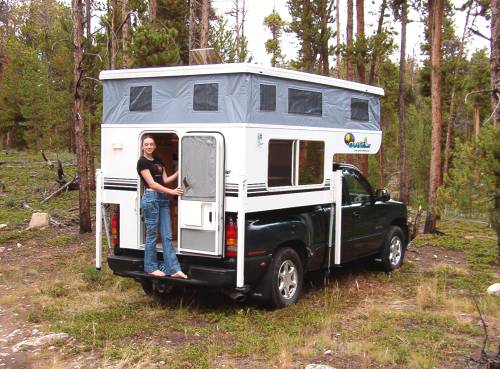

Caribou height allows you to go anywhere your truck can go. Go deep into the wilderness.
Easy to crank up the soft side. |

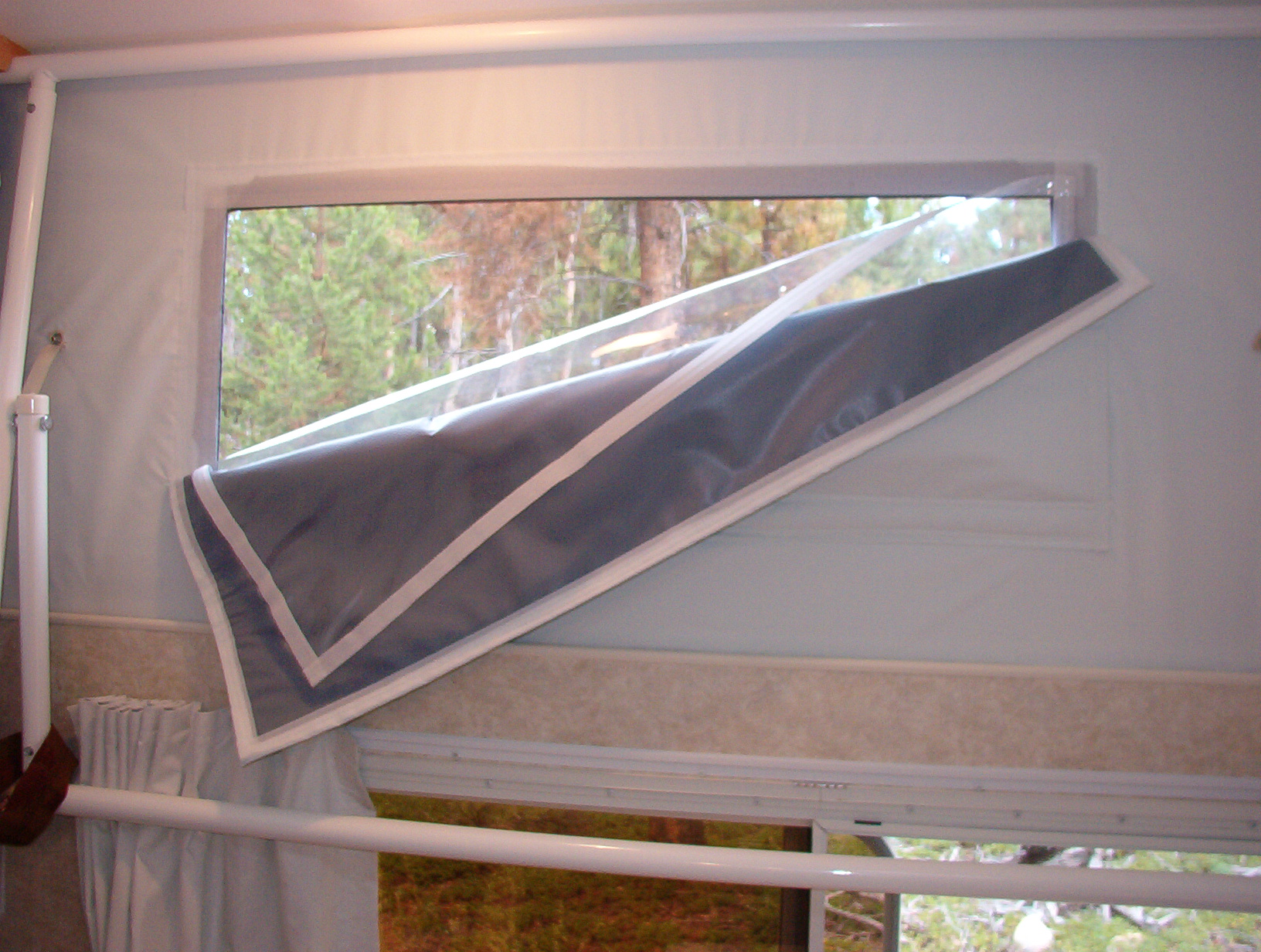

Screen window and privacy closure, Velcro in |

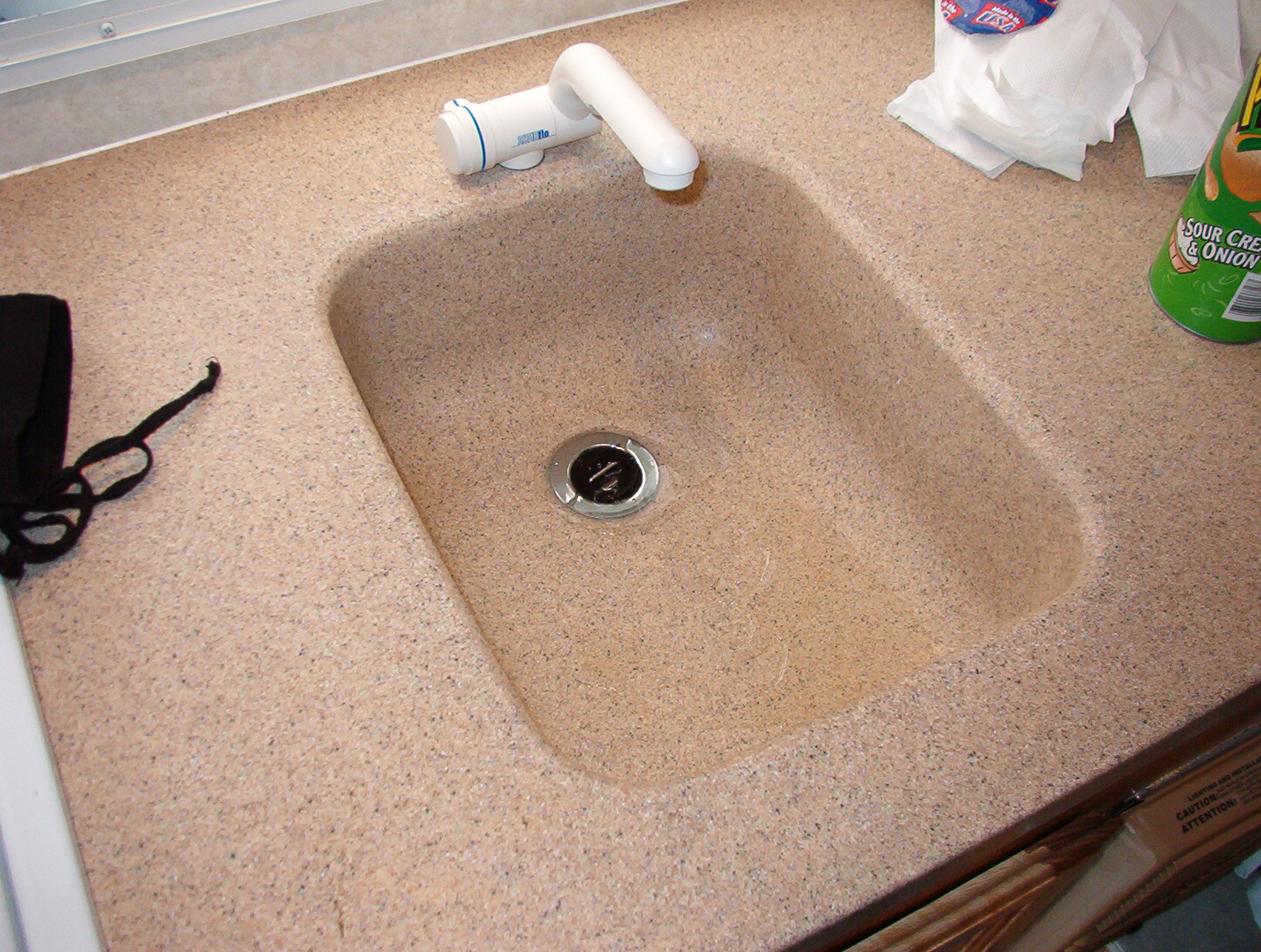

Quality counter & sink, with Shurflo water delivery |

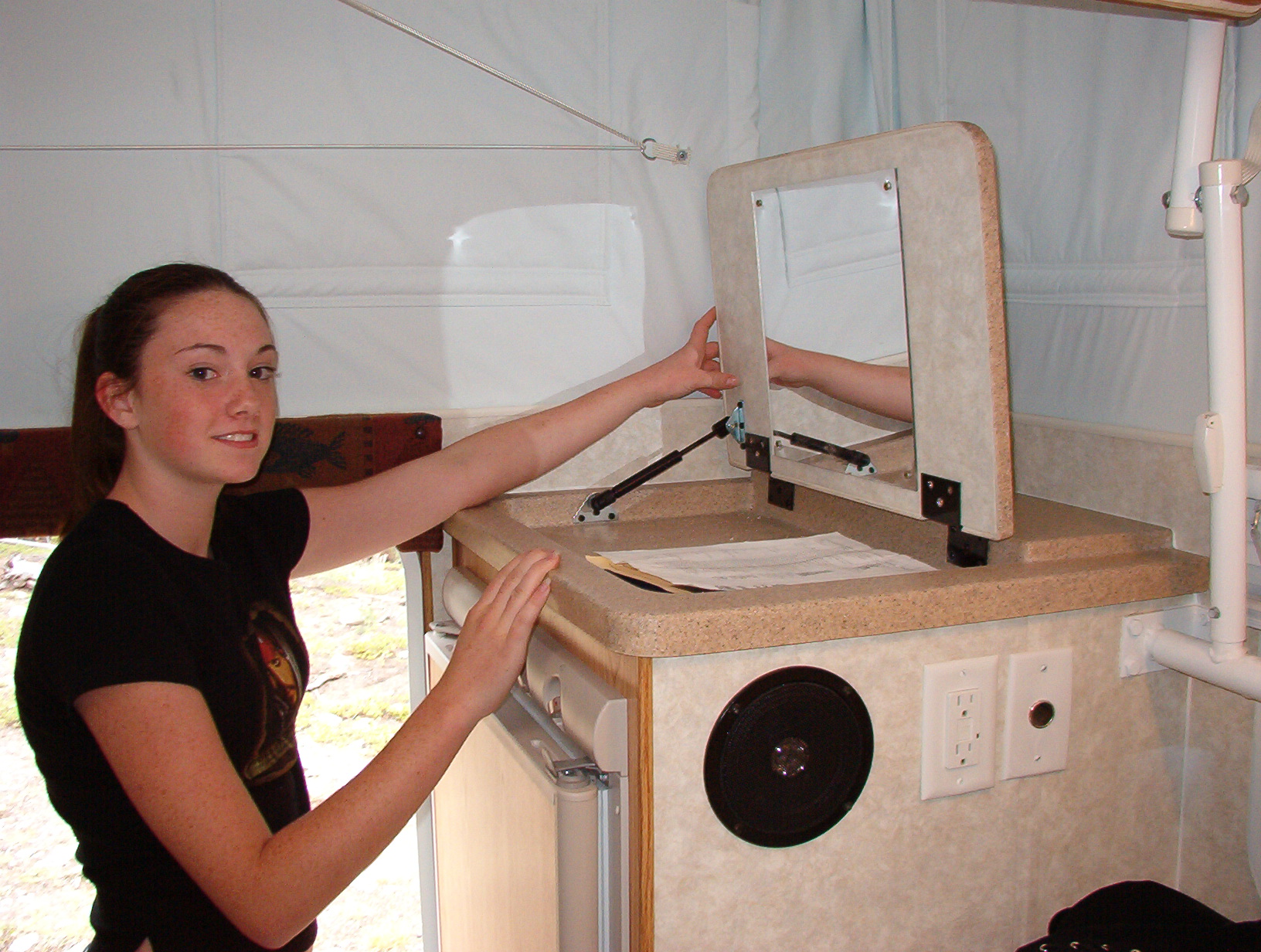

The vanity mirror and storage. |
Ventilation times 2 roof vents plus 10 windows |

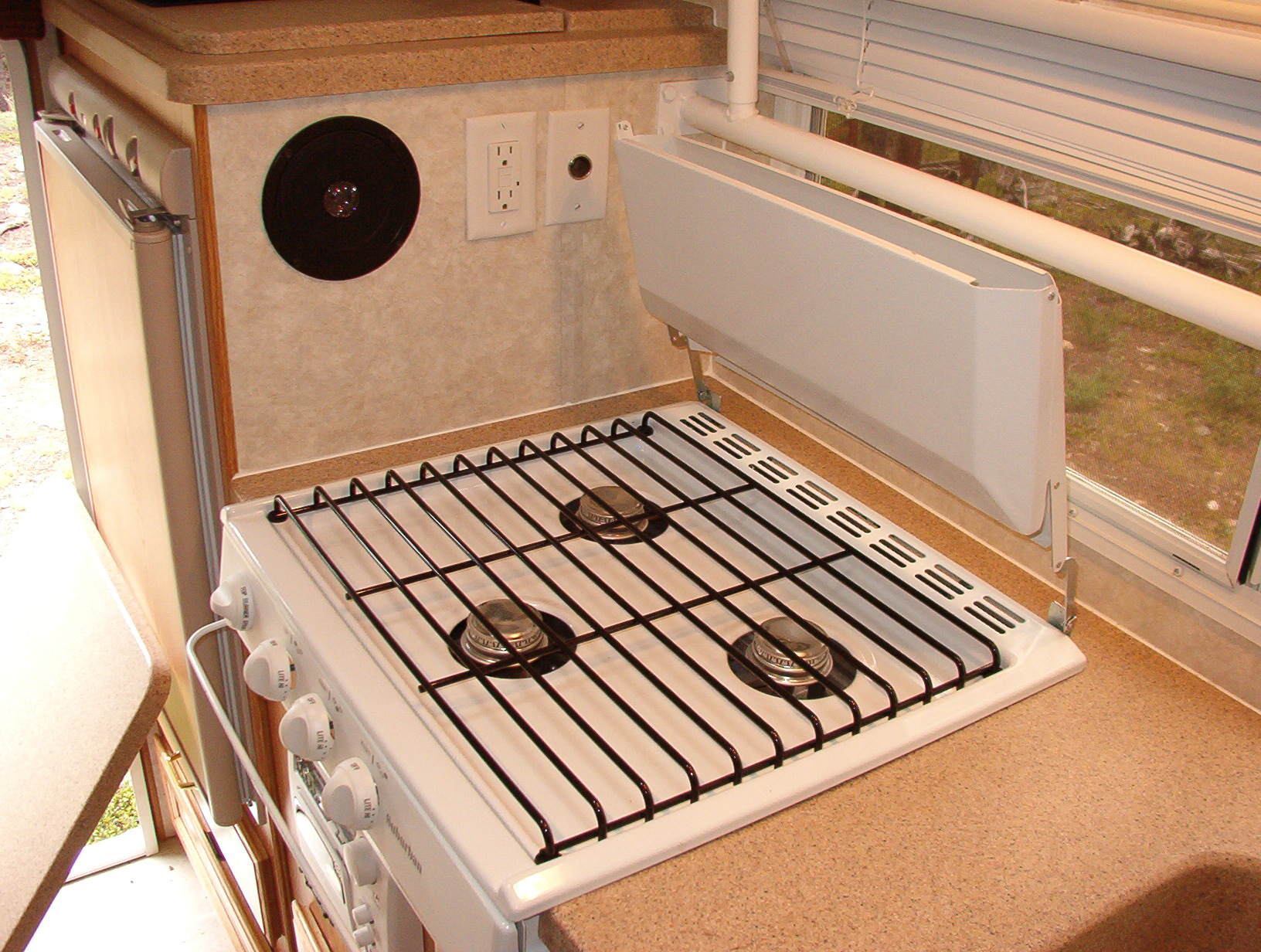

Three burner stove with Piezo ignition | The table pulls out and the dinette turns into a bed |
I told you |

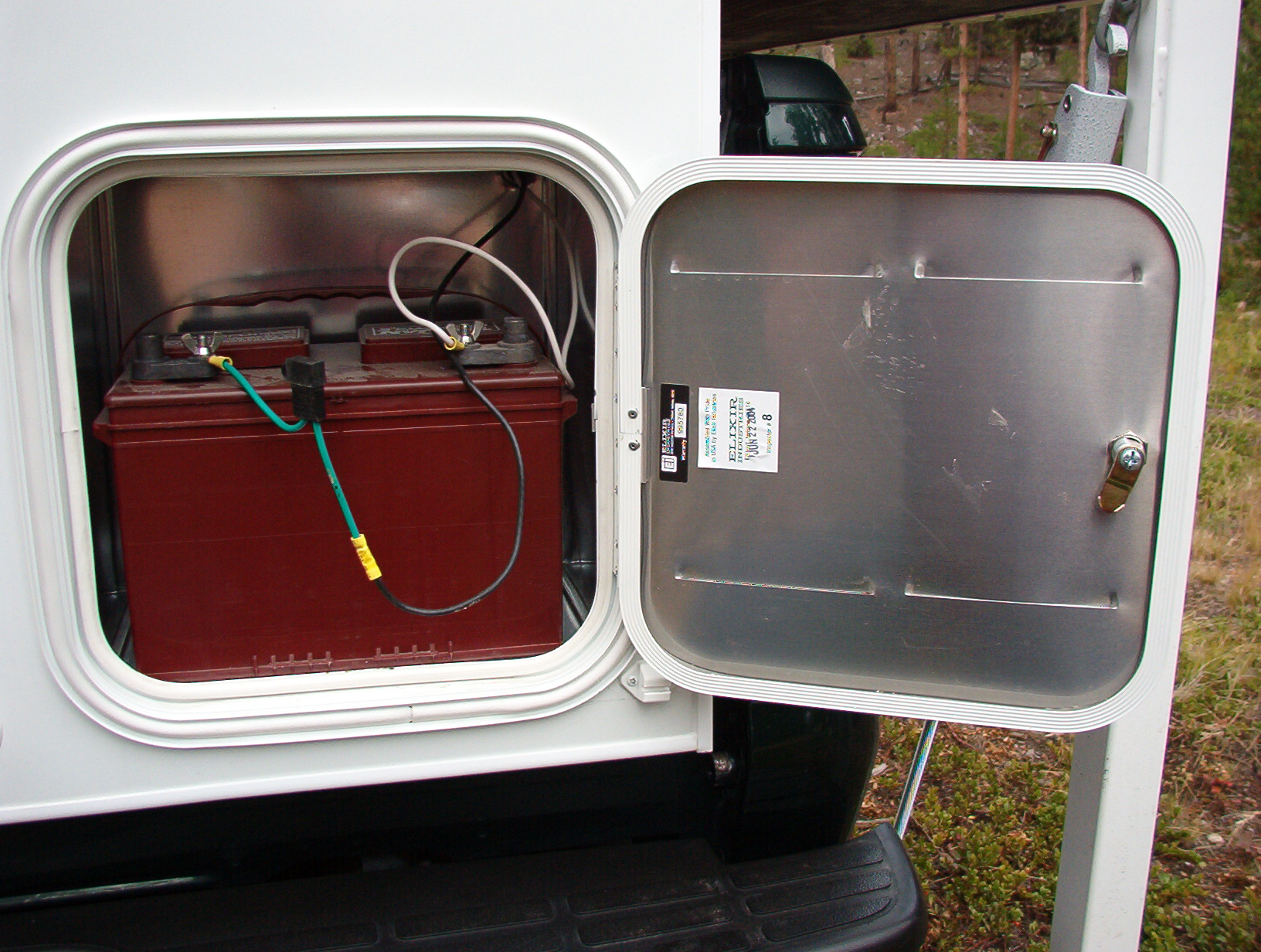

Series 24 battery | Easy access |

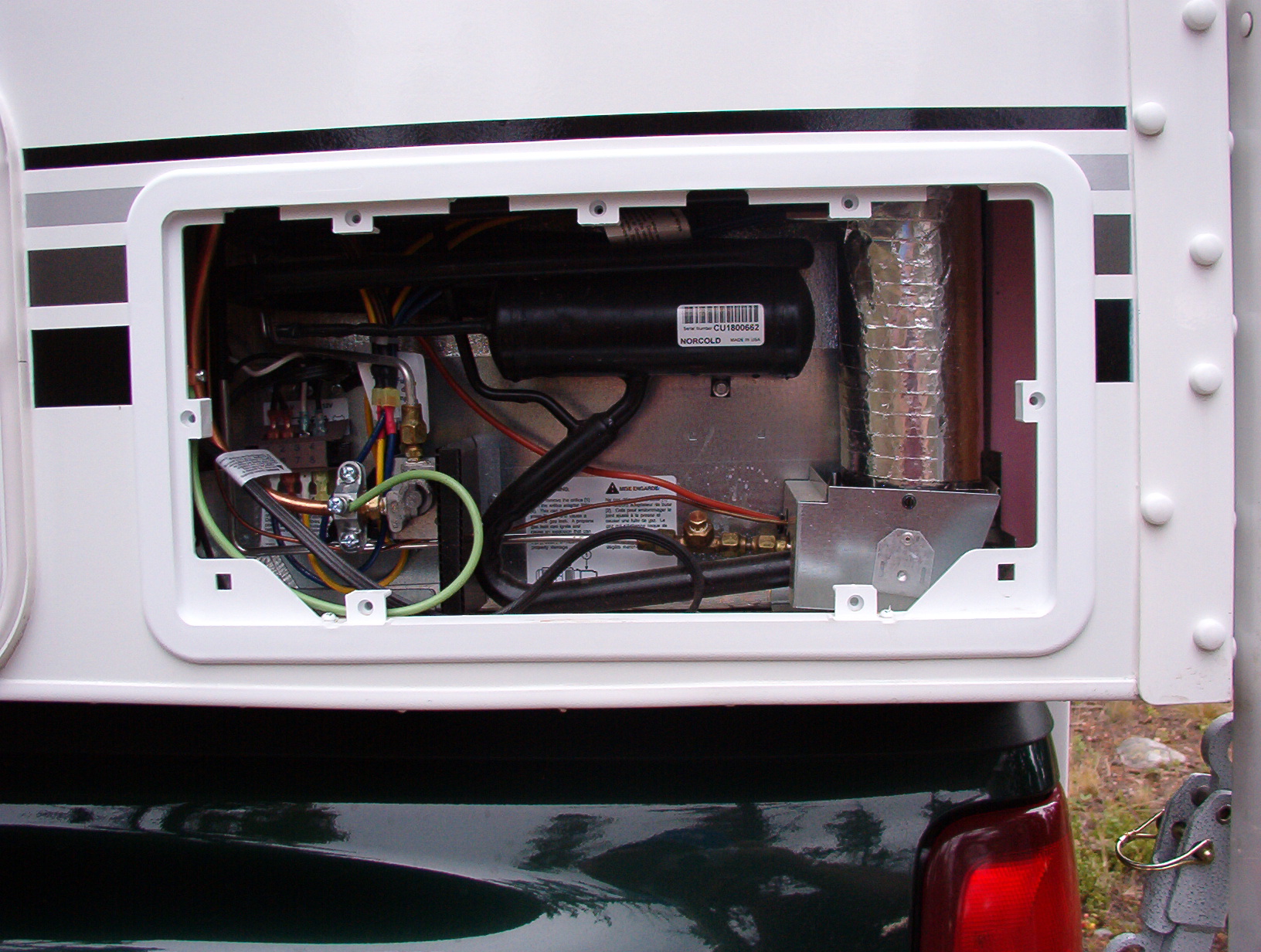

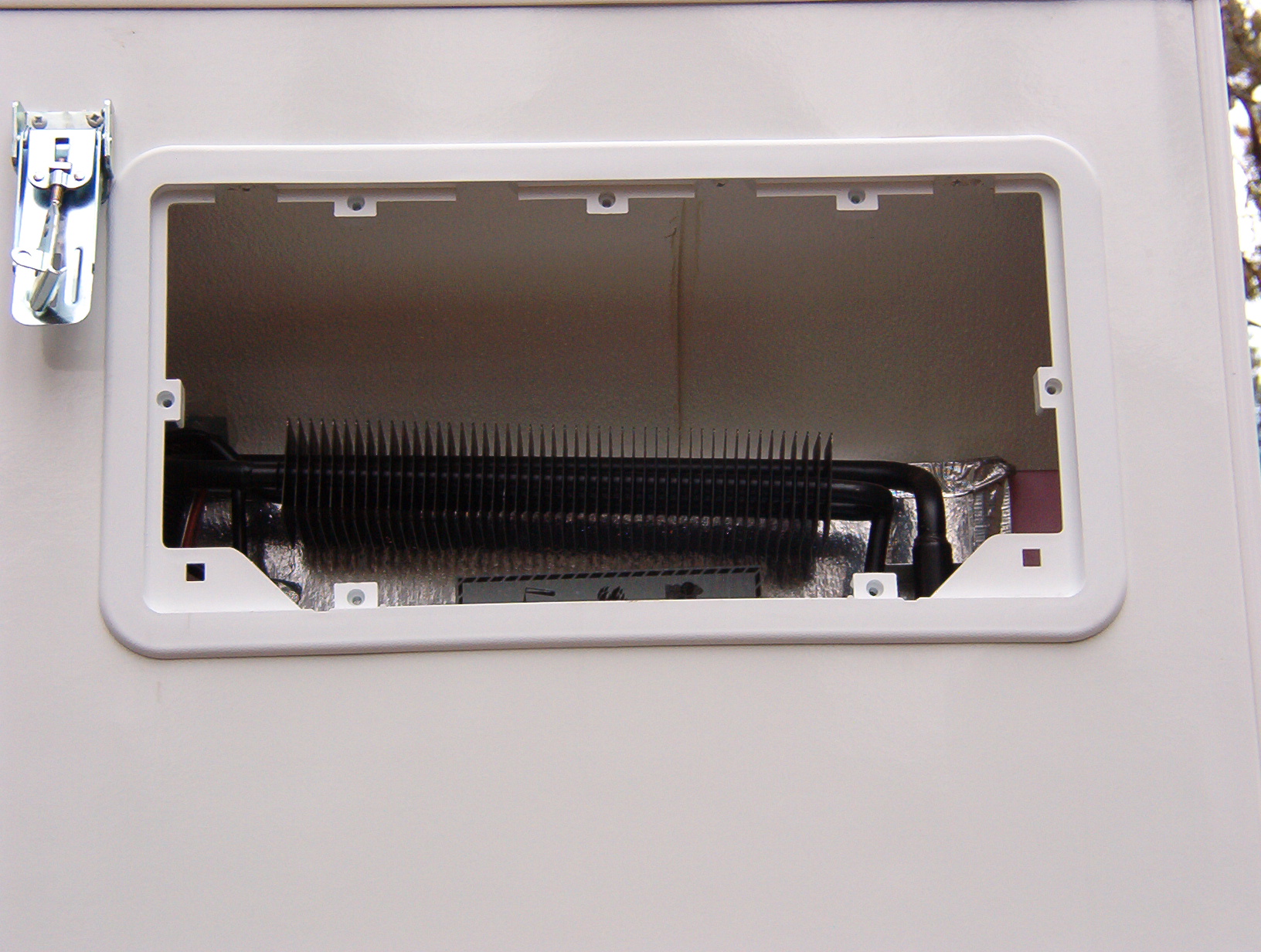

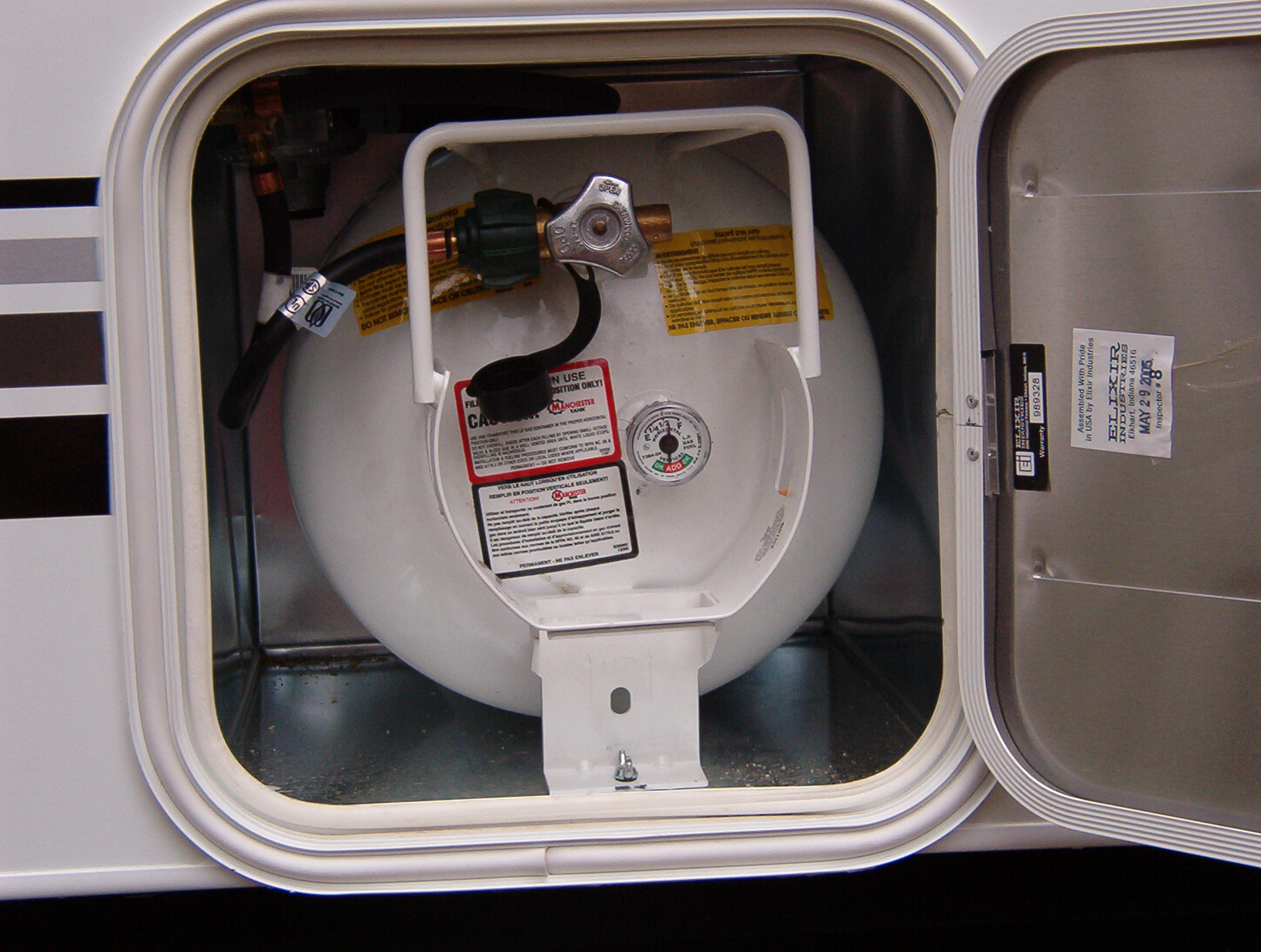

Back door for refrigerator | Propane tank with gauge | Did I mention the 10 windows? |
Exploring in comfort |
Filon exterior looks great & will for many years. |

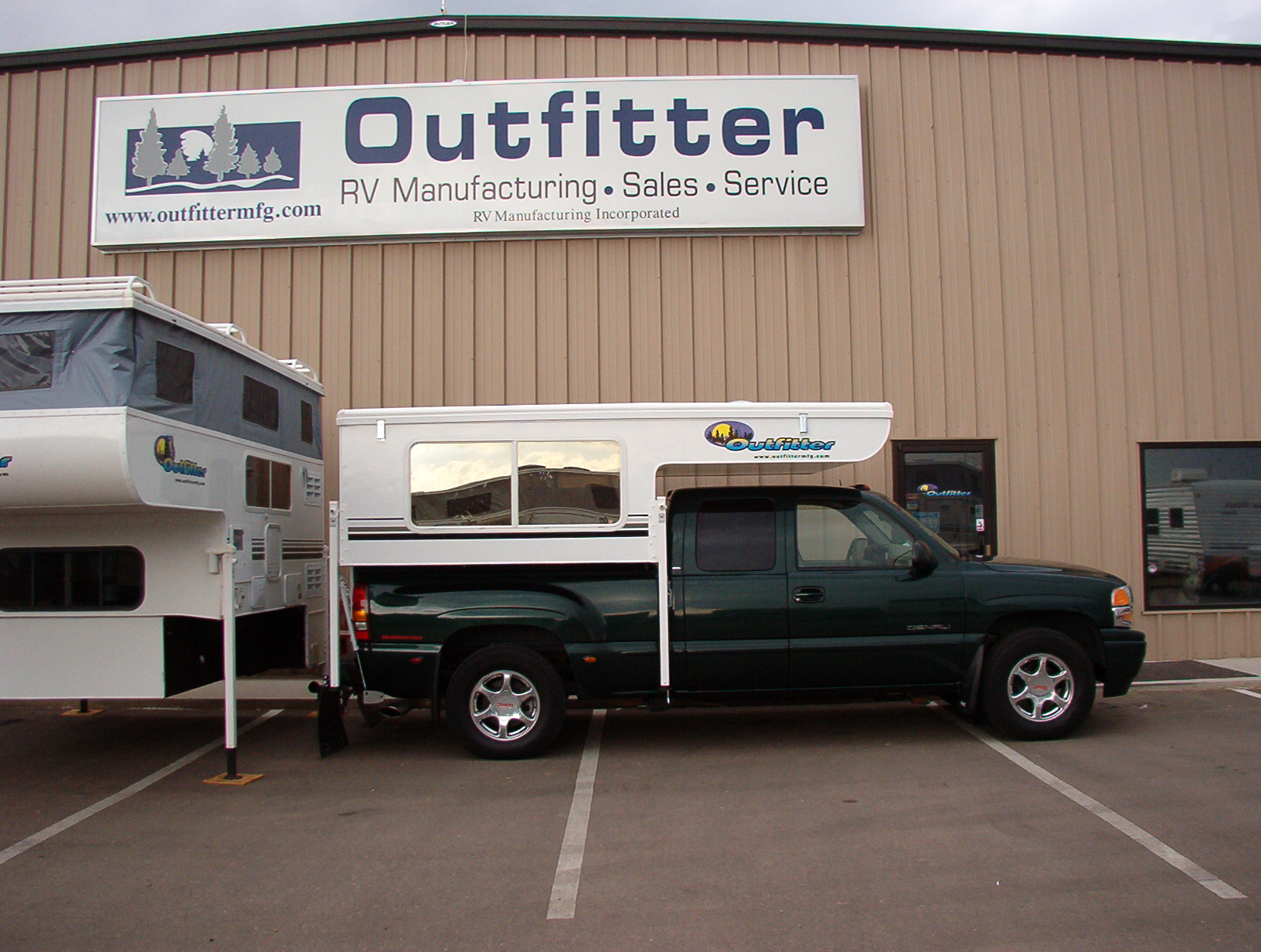

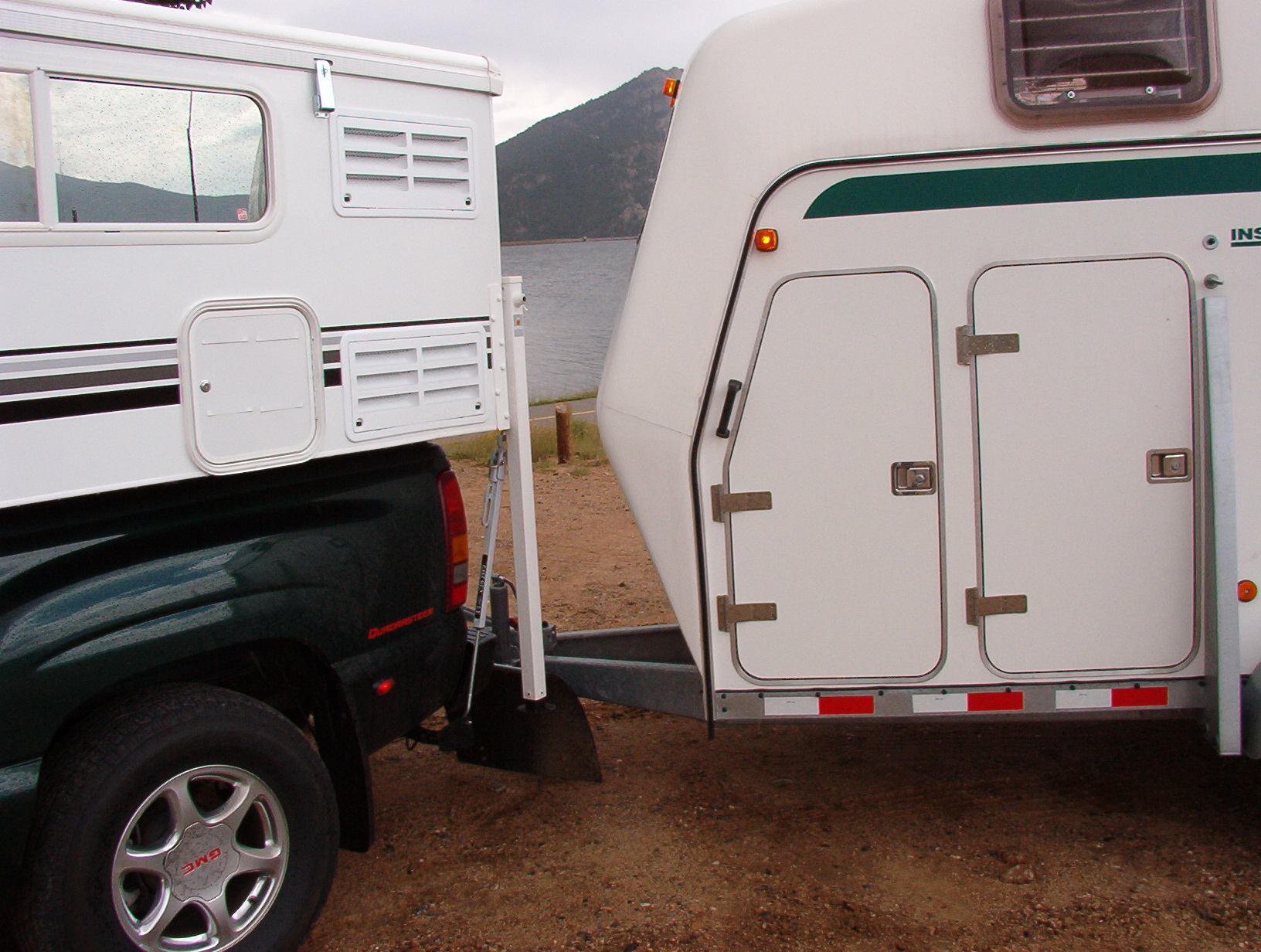

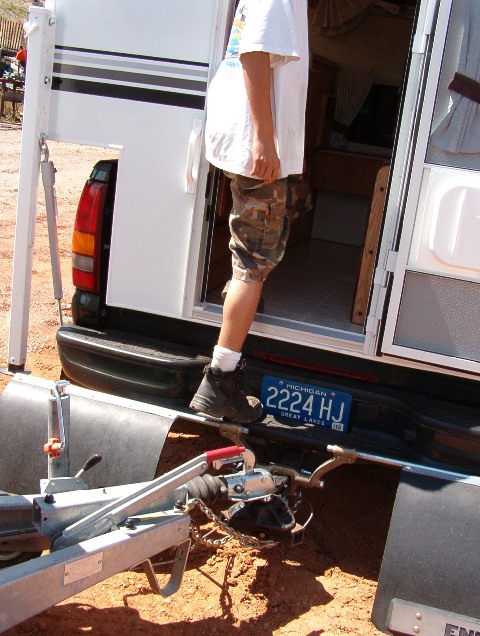

The Outfitter factory is in Longmont CO | Handmade in the USA, 150 a year, one at a time. | I didn't have to use any special hitch, towing worked well with the camper. |

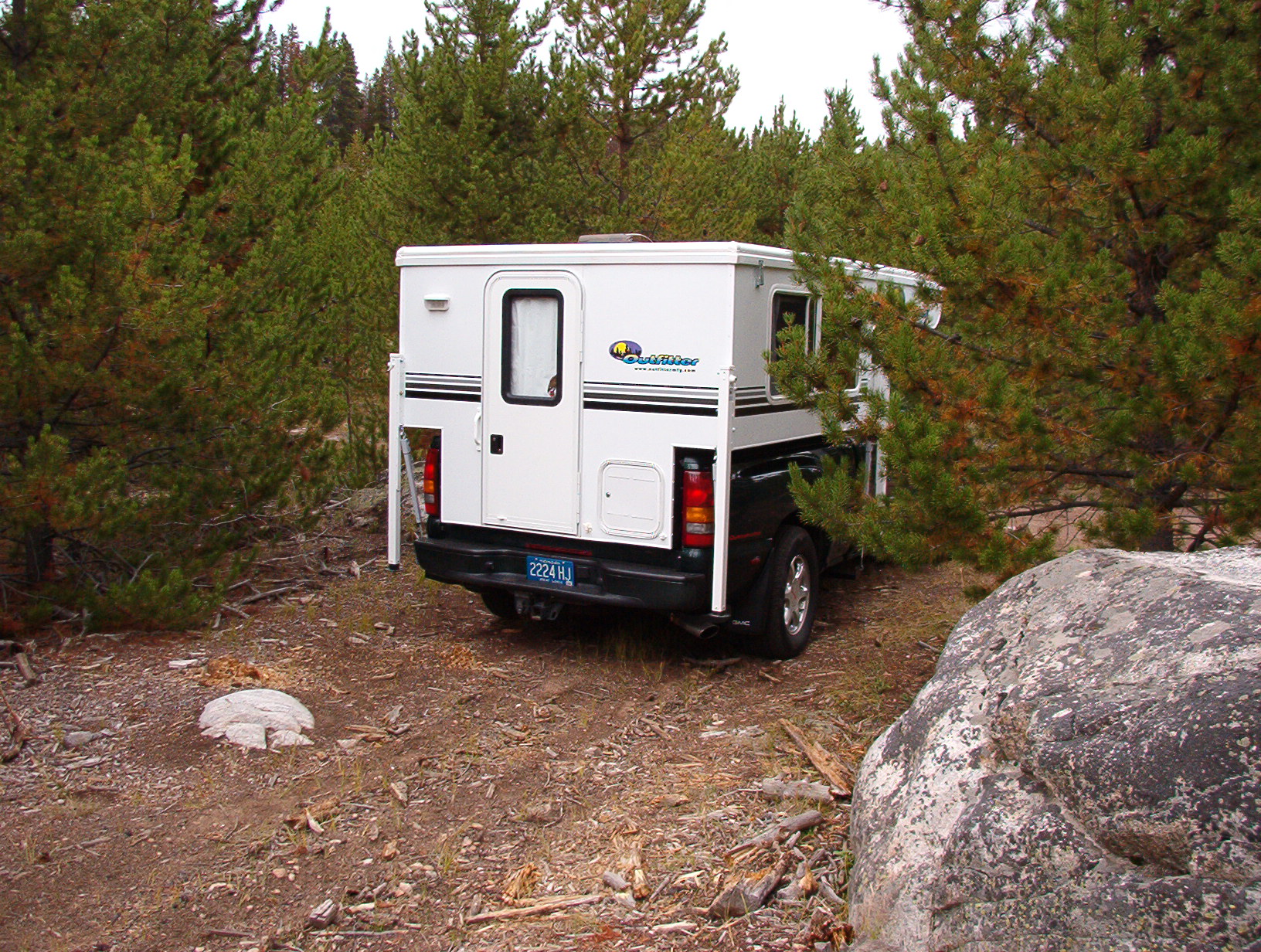

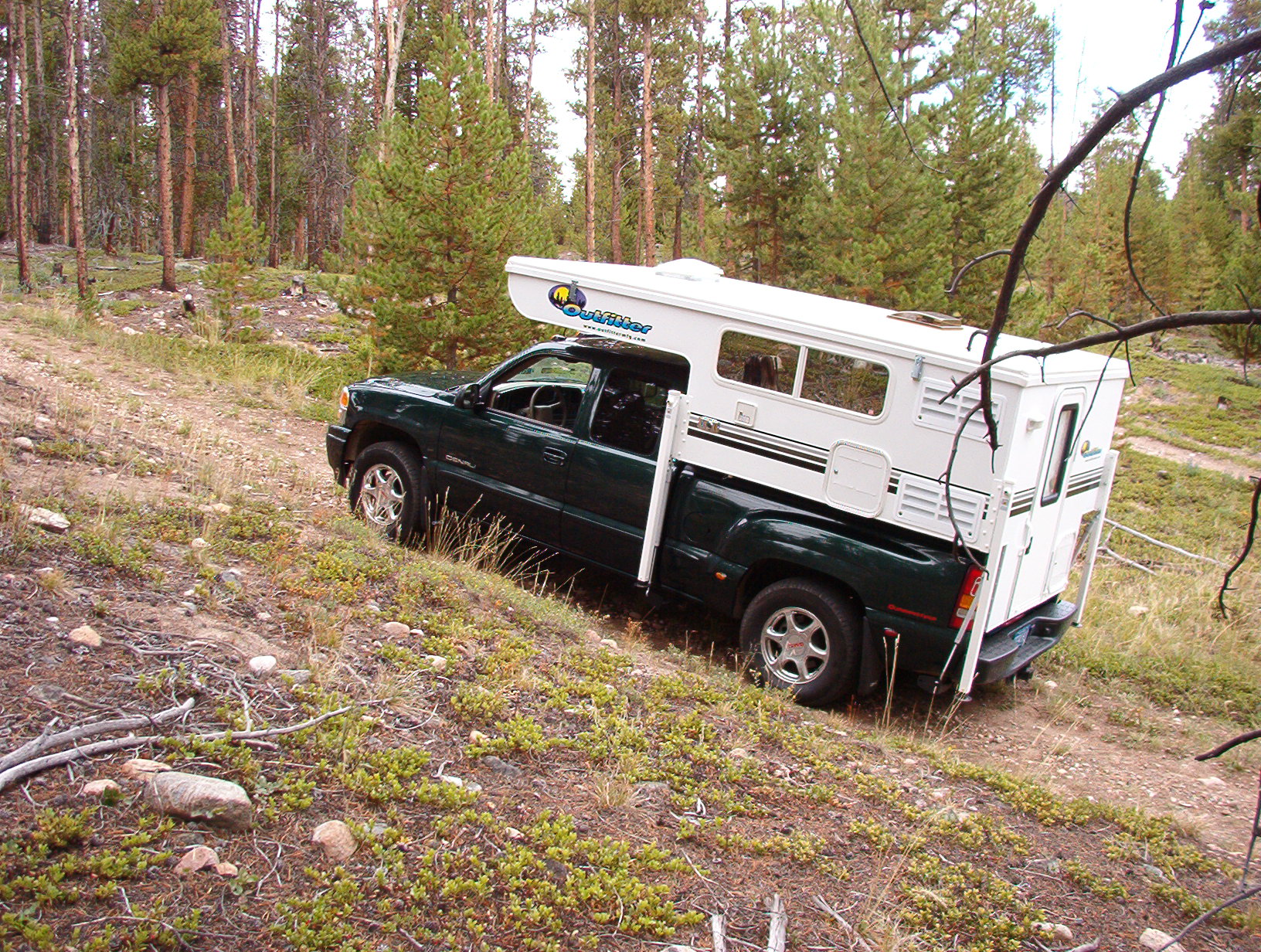

Yeah that's me sneaking around trails |

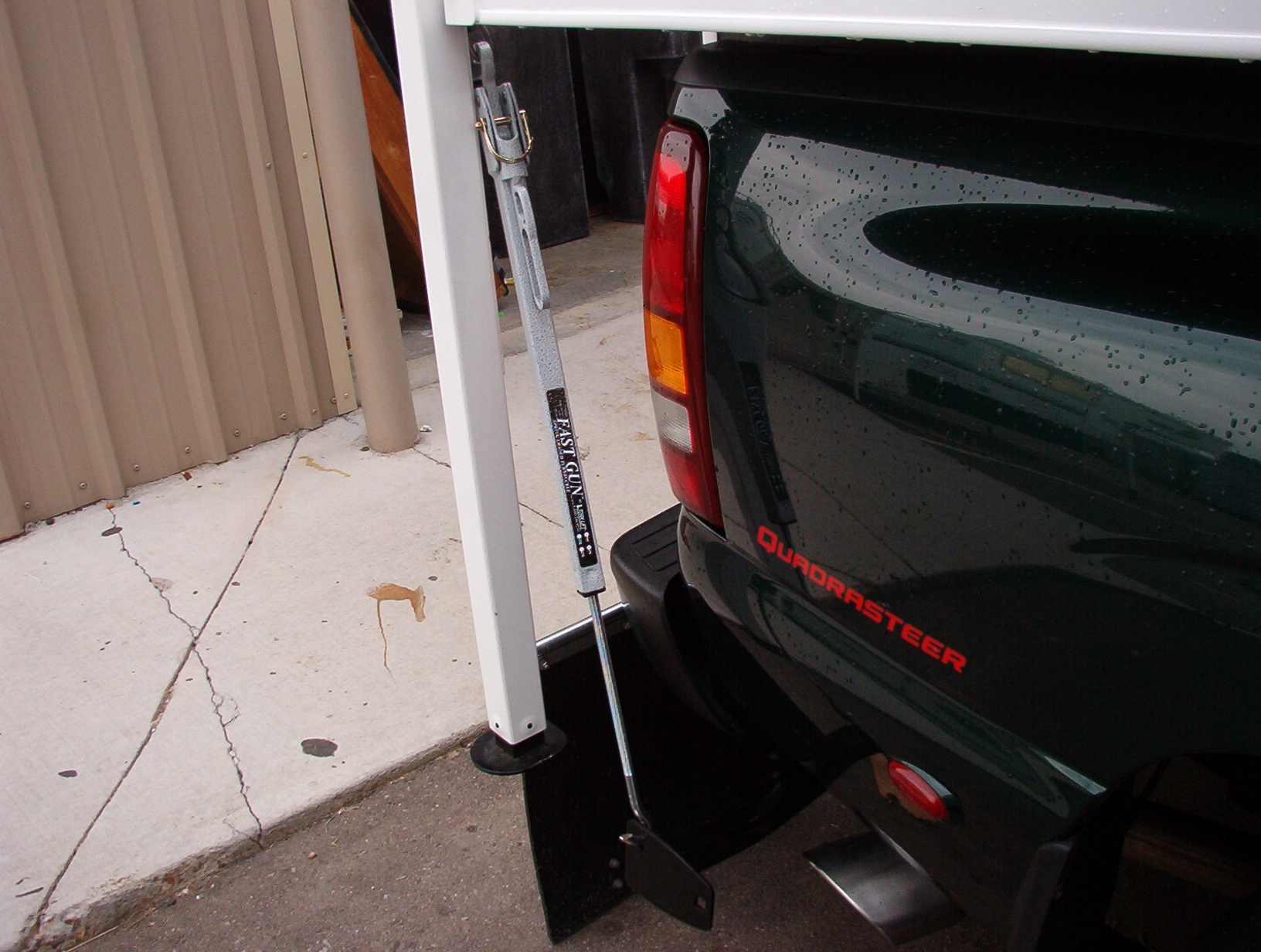

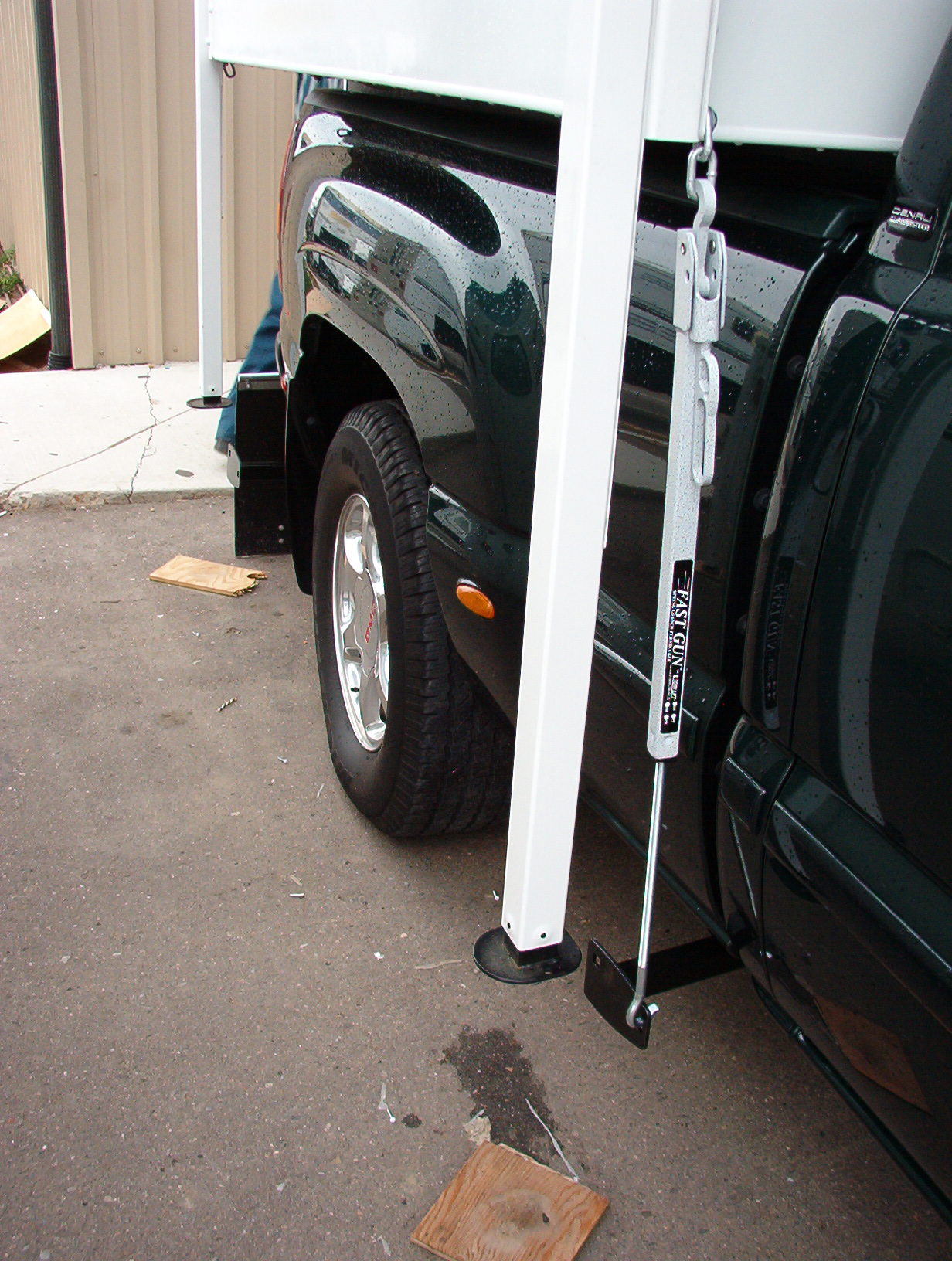

Fastgun lever action spring loaded turnbuckle |

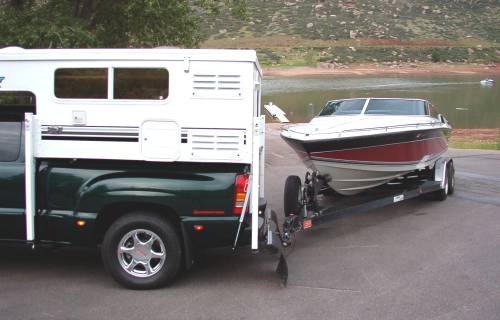

Brian Ward of Outfitter tried the Quadrasteer with a boat in tow. "It acted like the truck had a properly adjusted weight distributing hitch with sway bars, when it didn't. The boat stayed put when I tried to get it to whip. The truck and trailer worked as one. |
Vern Trujillo towed a 26' travel trailer with the GMC Quadrasteer. "The control in lane change with a trailer was great with no sway. Backing up the trailer was also easier. It's a truck I'd consider purchasing." |
For more information visit the Outfitter website at www.OutfitterMfg.com or call 1-877-223-0814. For more information on Torklift camper systems, visit their website at www.TORKLIFT.com or call 1-800-246-8132 For more information on Quadrasteer, visit www.QuadrasteerClub.com |
